MSI Creator X299 User Manual

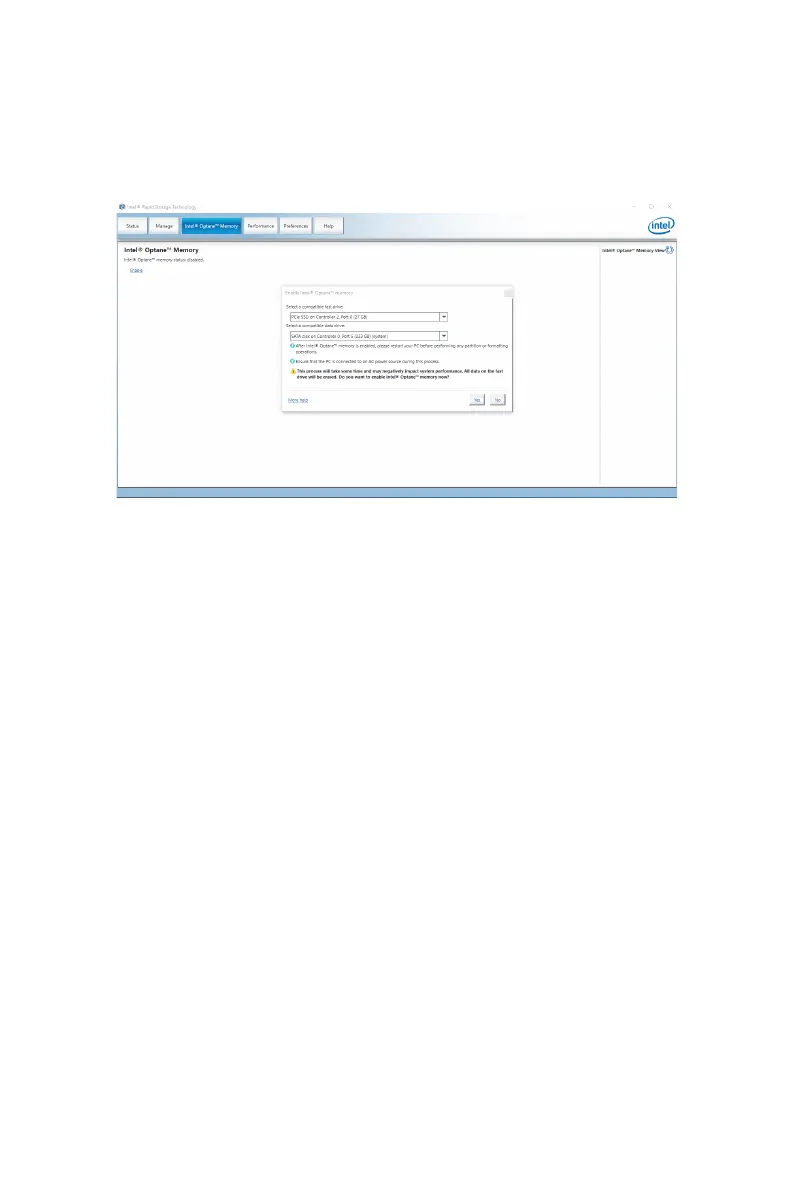

5. Enable Intel® Optane™ Memory.
▫ Run the Intel® Rapid Storage Technology software.
▫ Click Intel
®
Optane™ Memory tab and click Enable.
▫ Click Yes in the dialog.
6. Reboot System.
⚠
WARNING
Once you enable Intel® Optane™ memory, in order to prevent seriously damage your
operating system, please follow the cautions listed below.
∙ DO NOT set the SATA mode back to AHCI in BIOS.
∙ DO NOT revert back to older version of the BIOS.
∙ DO NOT remove the Intel® Optane™ memory module.
∙ DO NOT replace the CPU that is not supported by Intel
®
Optane™ Memory.
98
Intel® Optane™ Memory Configuration

MSI Creator X299 Specifications

General

Socket	LGA 2066
Chipset	Intel X299
Form Factor	ATX
Maximum Memory	128GB
SATA 6Gb/s Ports	8
Memory Slots	8
USB 3.2 Gen 2 Type-C	1
Audio	Realtek ALC1220
LAN	Intel I219-V
RAID Support	0, 1, 5, 10
