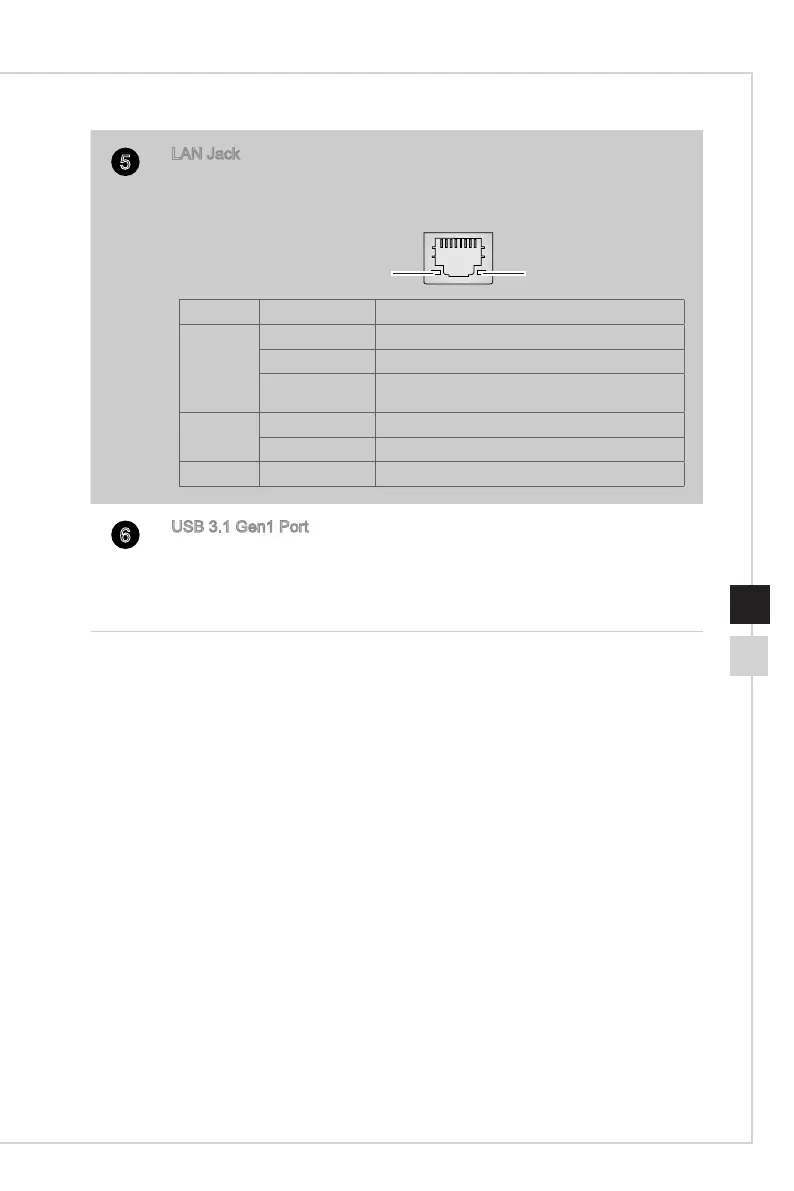

LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local
Area Network (LAN)� You can connect a network cable to it�
Green/ Orange Yellow
LED Color
LED State Condition
Yellow O
LAN link is not established�
On (steady state) LAN link is established�
On (blinking) The computer is communicating with another computer
on the LAN�
Green O 10 Mbit/sec data rate is selected�
On 100 Mbit/sec data rate is selected�
Orange On 1000 Mbit/sec data rate is selected�
6
USB 3�1 Gen1 Port
The USB (Universal Serial Bus) port is for attaching USB devices such
as keyboard, mouse, or other USB-compatible devices� It supports up
to 5Gbit/s (SuperSpeed) data transfer rate� The USB 3�1 Gen1 port is
backward-compatible with USB 2�0 devices�
