MSI Cubi Series

6
Getting Started
8

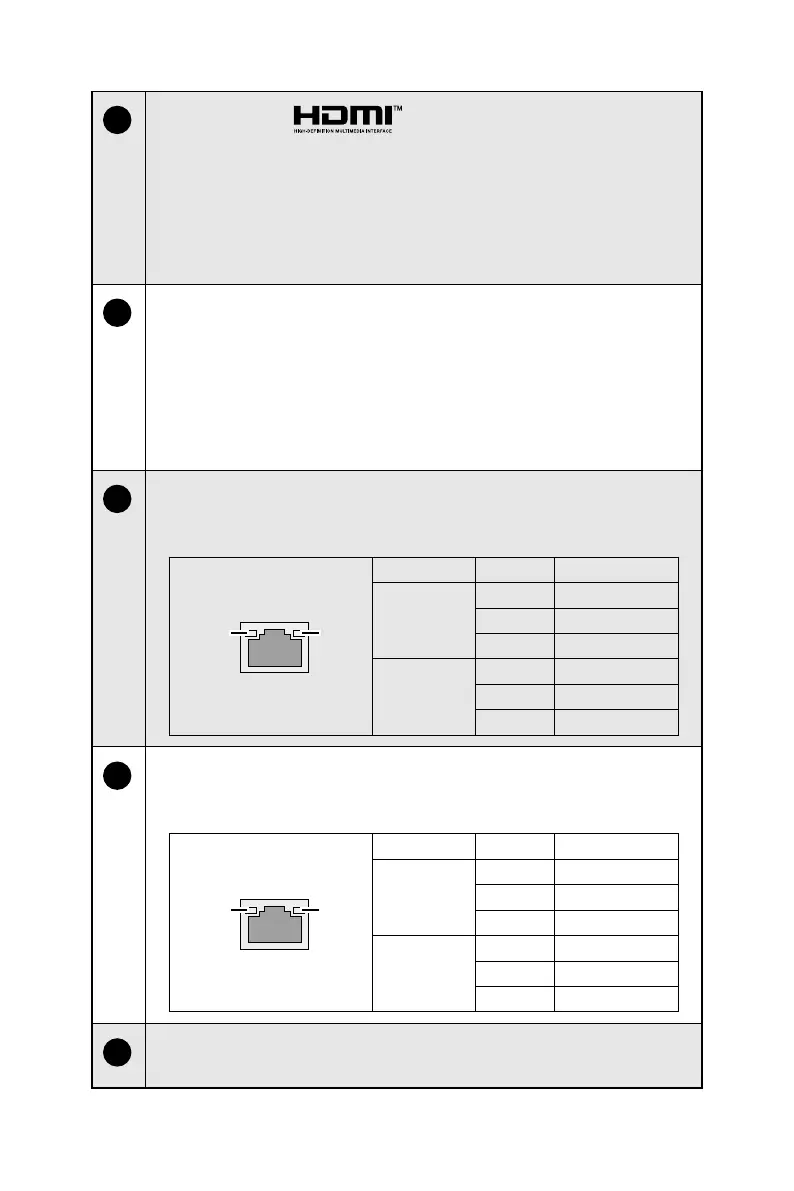

HDMI™ Connector
Supports 4K@60Hz as specified in HDMI™ 2.0b.
⚠
Important
∙ Graphics specifications may vary depending on the installed CPU.
∙ For processors without integrated graphics, connect your monitor to the
discrete graphics card.
9
DisplayPort 1.4
Supports a maximum resolution of 4K@60Hz.
⚠
Important
∙ Graphics specifications may vary depending on the installed CPU.
∙ For processors without integrated graphics, connect your monitor to the
discrete graphics card.
10
2.5 Gbps LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local Area
Network (LAN). You can connect a network cable to it.
LINK/ACT
LED
SPEED
LED
LED Status Description
Link/
Activity LED
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Off 10 Mbps
Green 100/1000 Mbps
Orange 2.5 Gbps
11
1 Gbps LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local Area
Network (LAN). You can connect a network cable to it.
LINK/ACT
LED
SPEED
LED
LED Status Description
Link/
Activity LED
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Off 10 Mbps
Green 100 Mbps
Orange 1 Gbps
12
Power Jack
Power supplied through this jack supplies power to your system.
