GE40/CR42 (MS-1492) Disassemble Guide

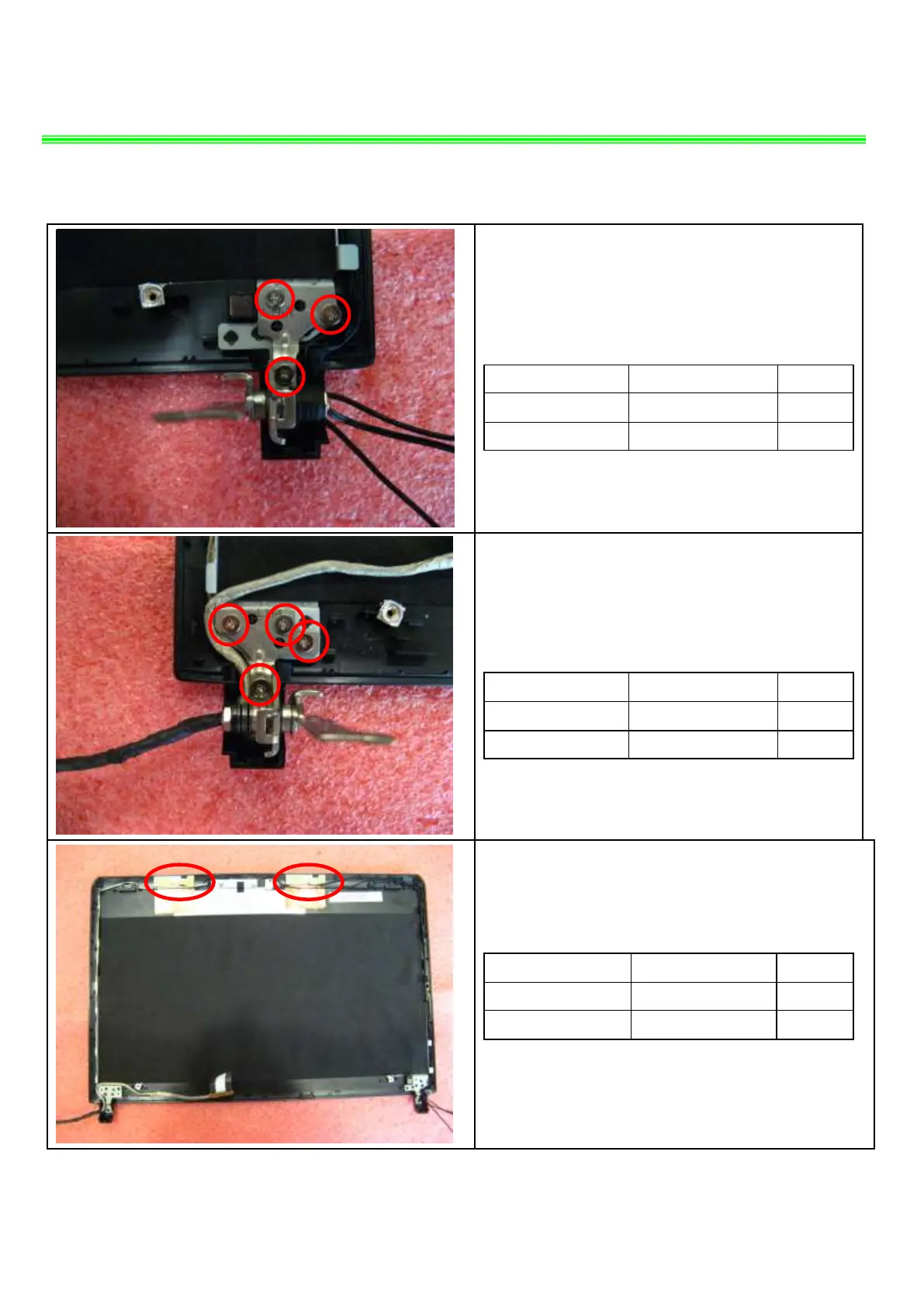

■ 7、 LCD MODULE ASSY
7.4:Remove the 3 screws (M2*3mm); Remove the
Right LCD hinge.
Attention: the screw driver torque is 3.0-3.5Kgf-cm
Component
P/N
Qty
Screw
E43-1203003-H29
3
Hinge R
E2M-4920411-G60
1
7.5:Remove the 4 screws (M2*3mm); Remove the
Left LCD hinge.
Attention: the screw driver torque is 3.0-3.5Kgf-cm
Component
P/N
Qty
Screw
E43-1203003-H29
4
Hinge L
E2M-4920311-G60
1
7.6:Remove the WIRELESS Antenna board from
LCD Cover.
Component
P/N
Qty
Antenna
S79-1801700-J51
2
LCD Cover
307-492A231-Y31
1
