GX70（MS-176K）Disassembly Guide
■ 3、BOTTOM DOOR ASSY

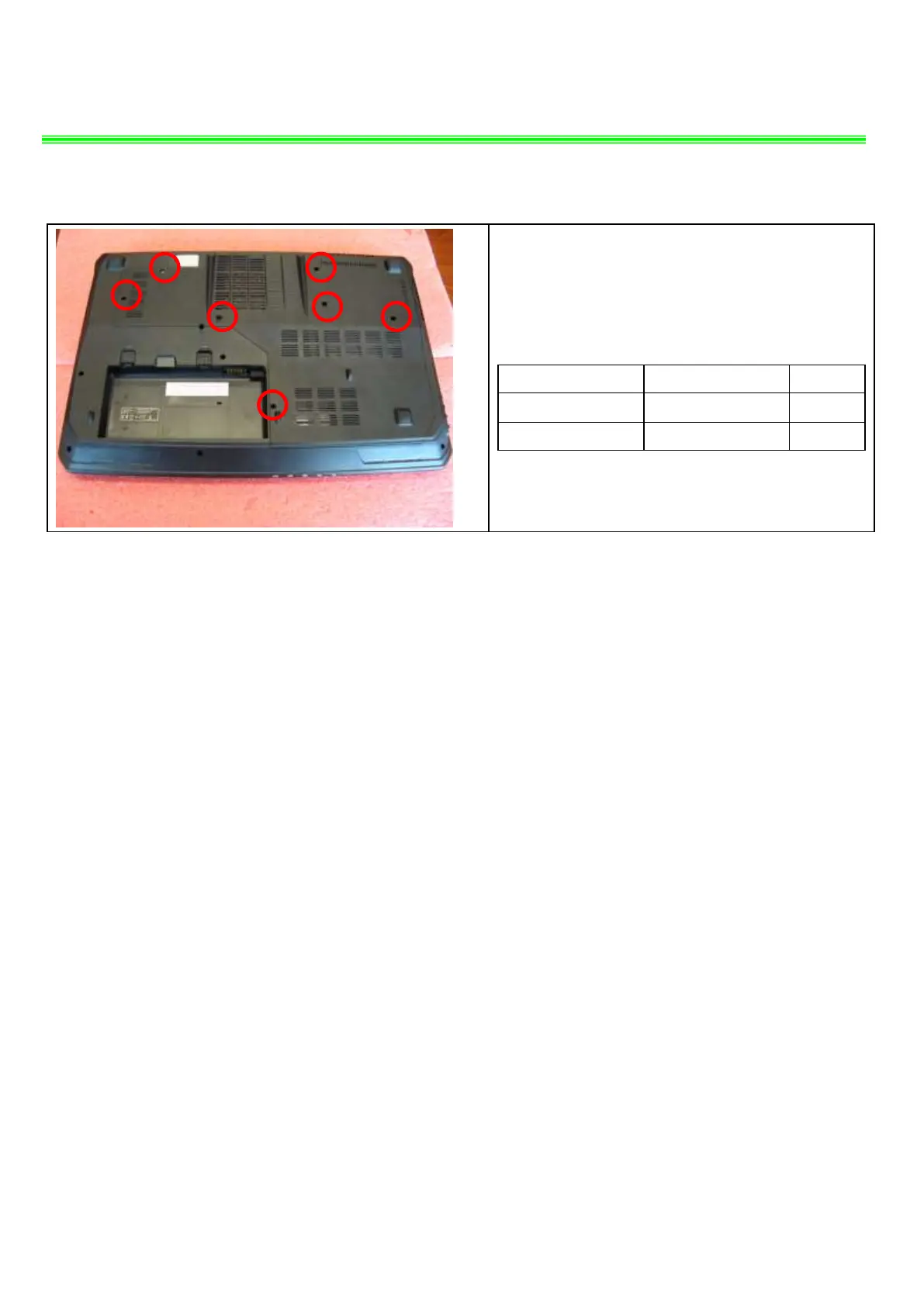

3.1：Remove the 7 screws (M2.5*7mm). Then
remove the Bottom door.
Attention: the screw driver touque is: 1.8-2.2 gf-cm
P/N
Qty
307-761J213-Y31
1
E43-1257002-G68
7
