MSI H170M ECO User Manual

13
Overview of Components
Overview of Components

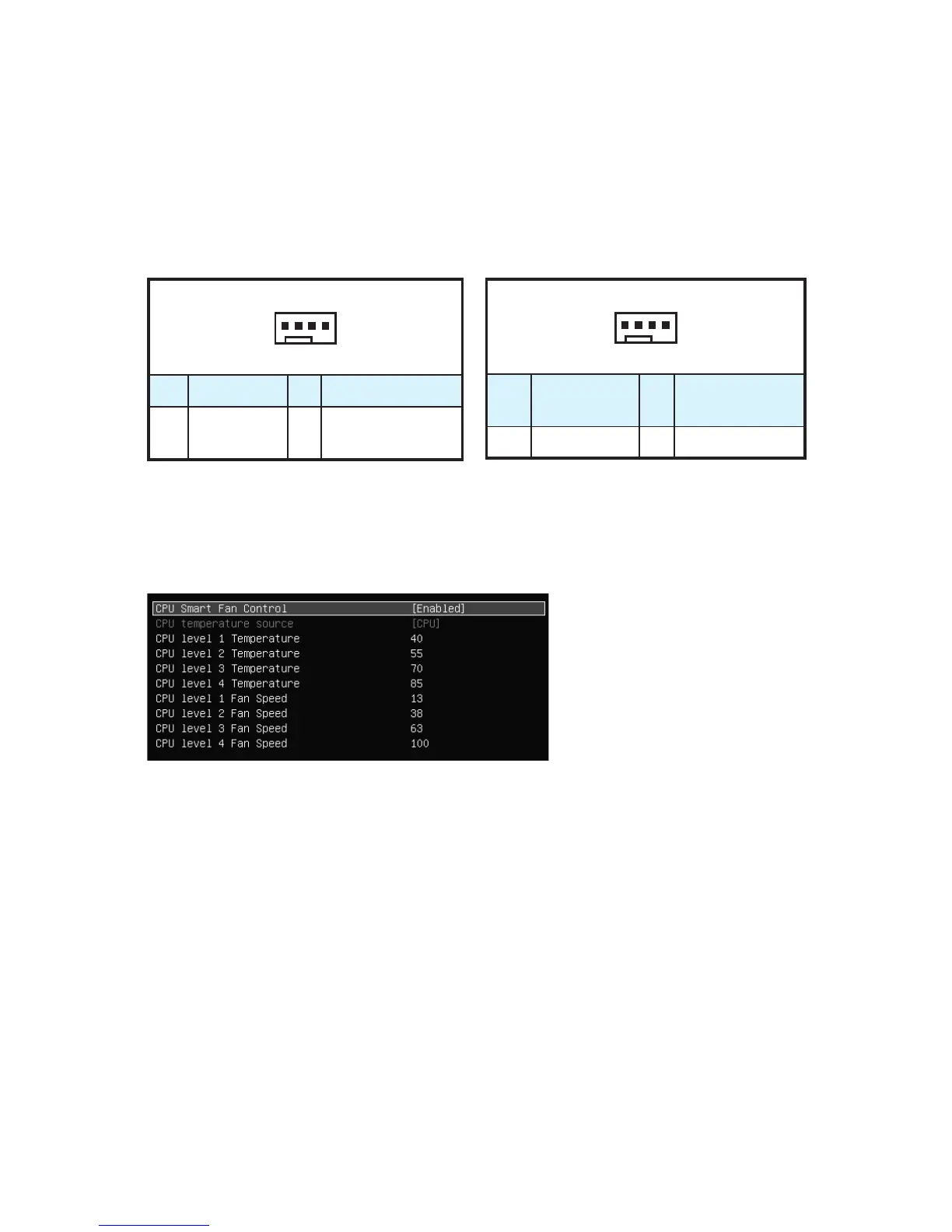

CPUFAN1, SYSFAN1~2: Fan Connectors
Fan connectors can be classified as PWM (Pulse Width Modulation) Mode and Voltage
Mode. PWM Mode fan connectors provide constant 12V output and adjust fan speed
with speed control signal. Voltage Mode fan connectors control fan speed by changing
voltage. Therefore, when you plug a 3-pin (Non-PWM) fan to a PWM Mode fan
connector, the fan speed will be always maintained at 100%, and that could be noisy.
1
CPUFAN1
1 Ground 2 +12V
3 Sense 4
Speed Control
Signal
1
SYSFAN1/ SYSFAN2
1 Ground 2
Voltage
Control
3 Sense 4 NC
PWM Mode fan connector Voltage Mode fan connector
Controlling the fan speed
There are two ways to manage fan speed. One is to go to BIOS > Advanced >
Hardware Monitor.
BIOS Hardware Monitor sub-menu allows you to set the temperature levels and the
corresponding fan speed levels.
BIOS > Advanced > Hardware Monitor

MSI H170M ECO Specifications

General

Form Factor	Micro ATX
Socket	LGA 1151
Chipset	Intel H170
Memory Slots	4
Max Memory	64 GB
PCI Express Slots	1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
Storage Interface	6 x SATA 6Gb/s
USB Ports	6 x USB 3.1 Gen1, 6 x USB 2.0
Audio	Realtek ALC887
Memory Speed	DDR4 2133
LAN	Realtek RTL8111H
Video Outputs	1 x DVI-D, 1 x HDMI, 1 x VGA
