MSI H270M MORTAR ARCTIC User Manual

29
Overview of Components
Important
y Intel
®
RST only supports PCIe M.2 SSD with UEFI ROM.
y Intel
®
Optane
TM
Memory Ready.
M2_1: M.2 Slot (Key M)
Video Demonstration
Watch the video to learn how to Install
M.2 module.
http://youtu.be/JCTFABytrYA

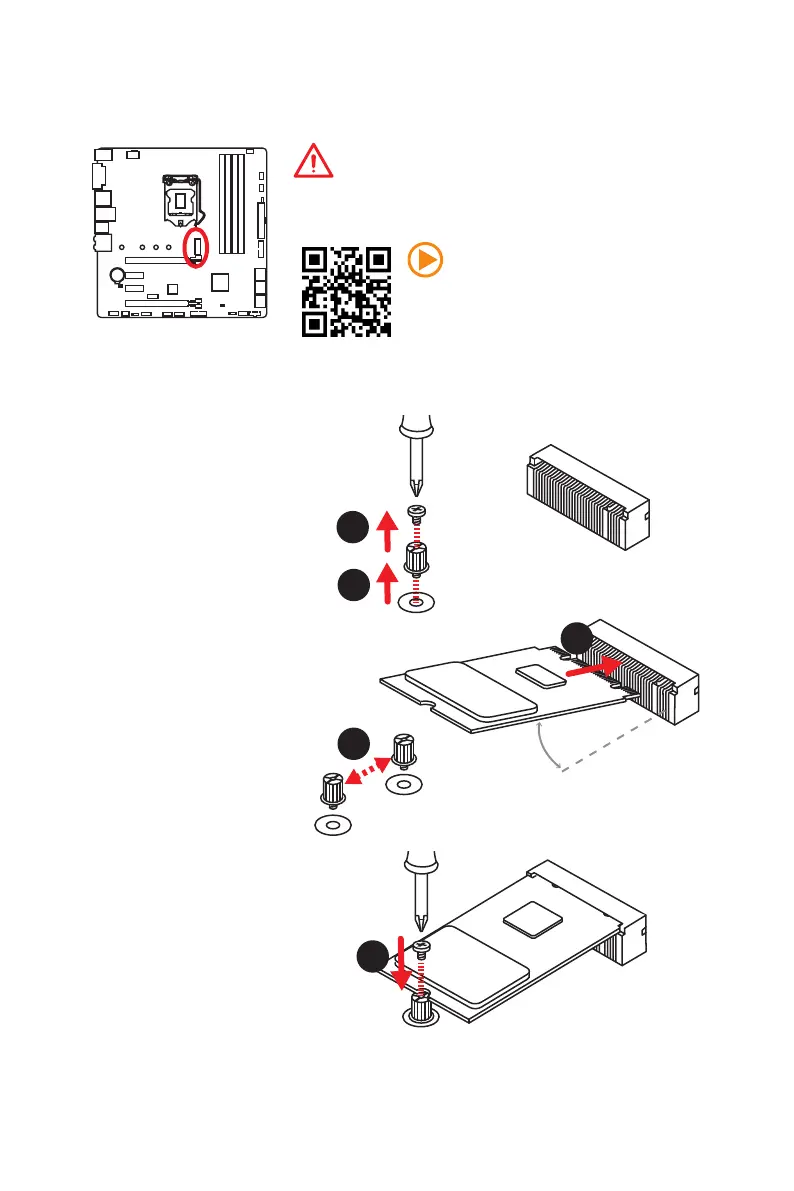

Installing M.2 module
1
2
3
30°
3. Tighten the base screw
into the hole of the
distance to the M.2 slot
as the length your M.2
module.
4. Insert your M.2 module
into the M.2 slot at a
30-degree angle.
5. Put the screw in the
notch on the trailing edge
of your M.2 module and
tighten it into the base
screw.
1. Remove the screw from
the base screw.
2. Remove the base screw.
4
5

MSI H270M MORTAR ARCTIC Specifications

General

Form Factor	Micro ATX
Socket	LGA 1151
Chipset	Intel H270
Memory Slots	4
Max Memory	64 GB
PCIe x1 Slots	2
SATA 6Gb/s	6
Dimensions (W x L)	24.4 cm x 24.4 cm
M.2 Slots	1
USB 3.1 Gen 2	1
USB 3.1 Gen 1	6
USB 2.0	6
Audio	Realtek ALC892
LAN	Realtek RTL8111H
RAID Support	RAID 0, RAID 1, RAID 5, RAID 10
Memory Speed	2400/ 2133 MHz
Power Pin	24-pin ATX main power connector, 8-pin ATX 12V power connector
