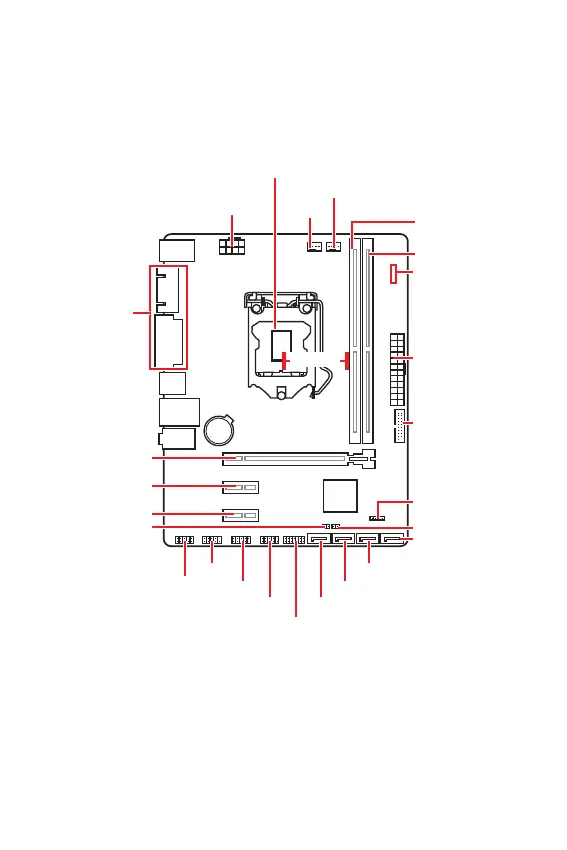

Vue d󾙓ensemble des composants
BAT1
Vue d󾙓ensemble des composants
CPU_FAN1
ATX_PWR1
EZ Debug LED
Socket
processeur
PCI_E2
PCI_E1
SYS_FAN1
PCI_E3
JBAT1
JCI1
JTPM1
DIMMA1
DIMMB1
JUSB2
JFP2
JFP1
CPU_PWR1
(en option)
JUSB1
JCOM1
JAUD1
SATA1
SATA4
SATA2
SATA3
48.73 mm*
* Distance entre le centre du CPU et le slot DIMM le plus proche.
