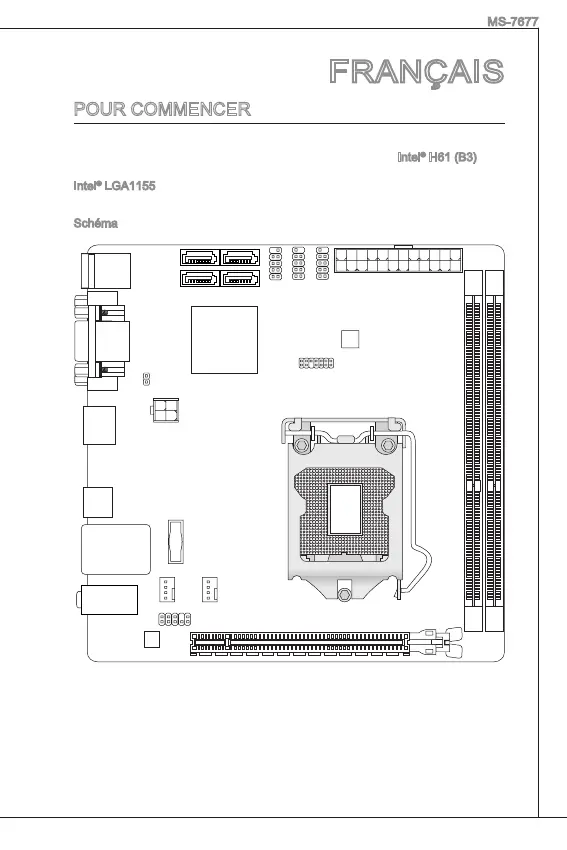

MSI H61I-E35 V2/W8 Series User Manual









󰘯


󰘯


BA
T1
+
PCI _E1
DIMM
1
DIMM2
JUSB2
JUSB1
JTPM1
JB
AT
1
JFP1
SATA1
SATA2
SATA3
SATA4
SYSF
AN
1
JAUD1
CPUF
AN
1
JPWR1
JPWR
2
Top: LAN Jack
Bottom:
USB ports
Top: mouse or
keyboard
Bottom:
USB ports
HDMI port
Optical S\PDIF-out port
T:Line-In
M:Line- Out
B:MIC-In
Top: VGA Port
Bottom: DVI-D Port

MSI H61I-E35 V2/W8 Series Specifications

General

Form Factor	Mini-ITX
Socket	LGA 1155
Chipset	Intel H61
Memory Type	DDR3
Memory Slots	2
Max Memory	16 GB
Memory Standard	DDR3 1066/1333
Audio	Realtek ALC887
RAID Support	No
SATA Ports	4
LAN	Realtek RTL8111E
Video Outputs	VGA, DVI-D, HDMI
