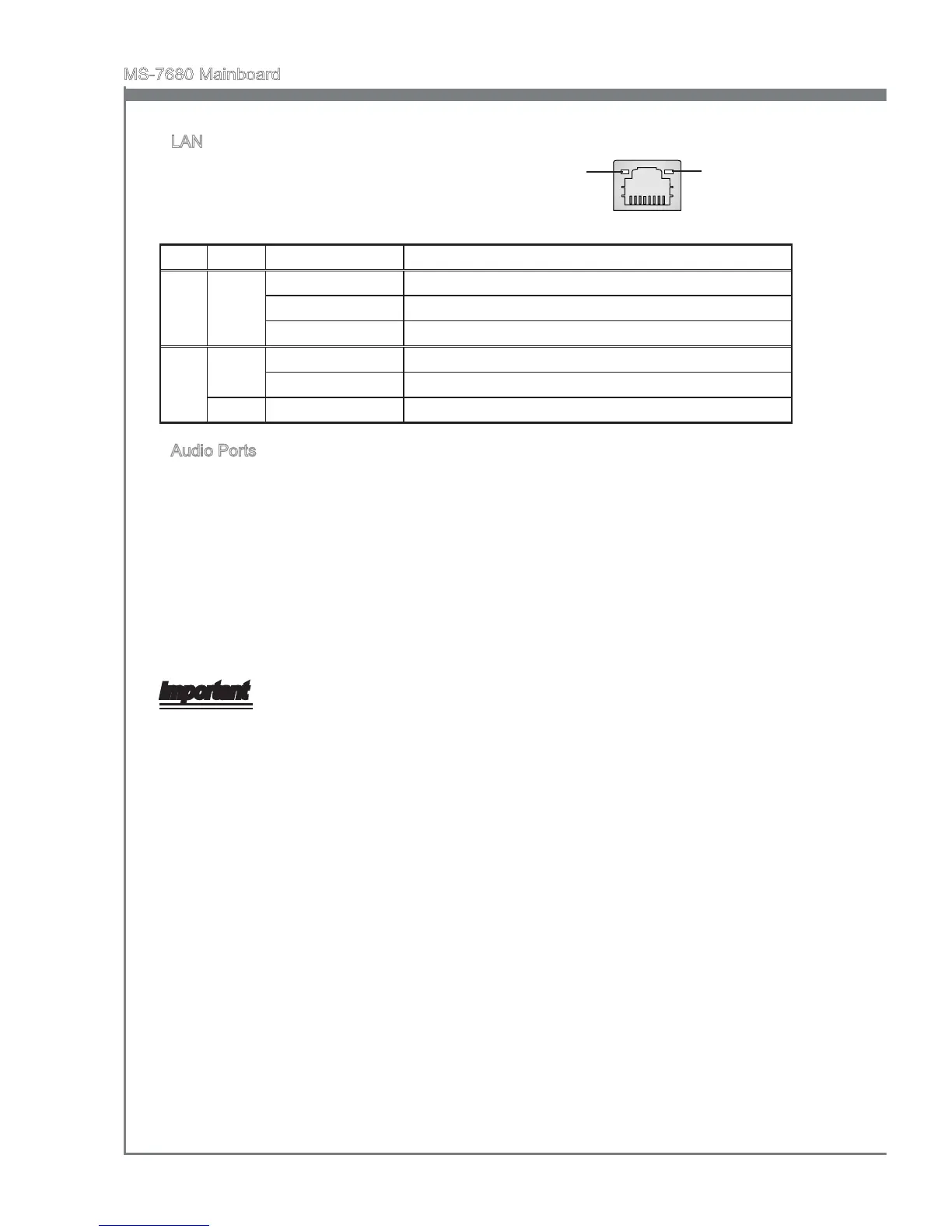

LAN
The standard RJ-45 LAN jack is for connection to
the Local Area Network (LAN). You can connect a
network cable to it.
LED Color LED State Condition
Left Yellow O󰘯 LAN link is not established.
On(Steady state) LAN link is established.
On(brighter & pulsing) The computer is communicating with another computer on the LAN.
Right Green O󰘯 10 Mbit/sec data rate is selected.
On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
Audio Ports
These audio connectors are used for audio devices. It is easy to di󰘯erentiate between
audio e󰘯ects according to the color of audio jacks.
Line-In: Blue - Line In, is used for external CD player, tape-player or other audio
devices.
Line-Out: Green - Line Out, is a connector for speakers or headphones.
Mic: Pink - Mic, is a connector for microphones.
RS-Out (optional): Black - Rear-Surround Out in 4/ 5.1/ 7.1 channel mode.
CS-Out (optoinal): Orange - Center/ Subwoofer Out in 5.1/ 7.1 channel mode.
SS-Out (optional): Gray - Side-Surround Out 7.1 channel mode.
Important
If the mainboard, which equips with 3 audio jacks, wants to reach the 8-channel sound
e󰘯ect, the 7th and 8th channels must be output from front panel.
▶
▶
■
■
■
■
■
■
Yellow Green/ Orange
