Connectors

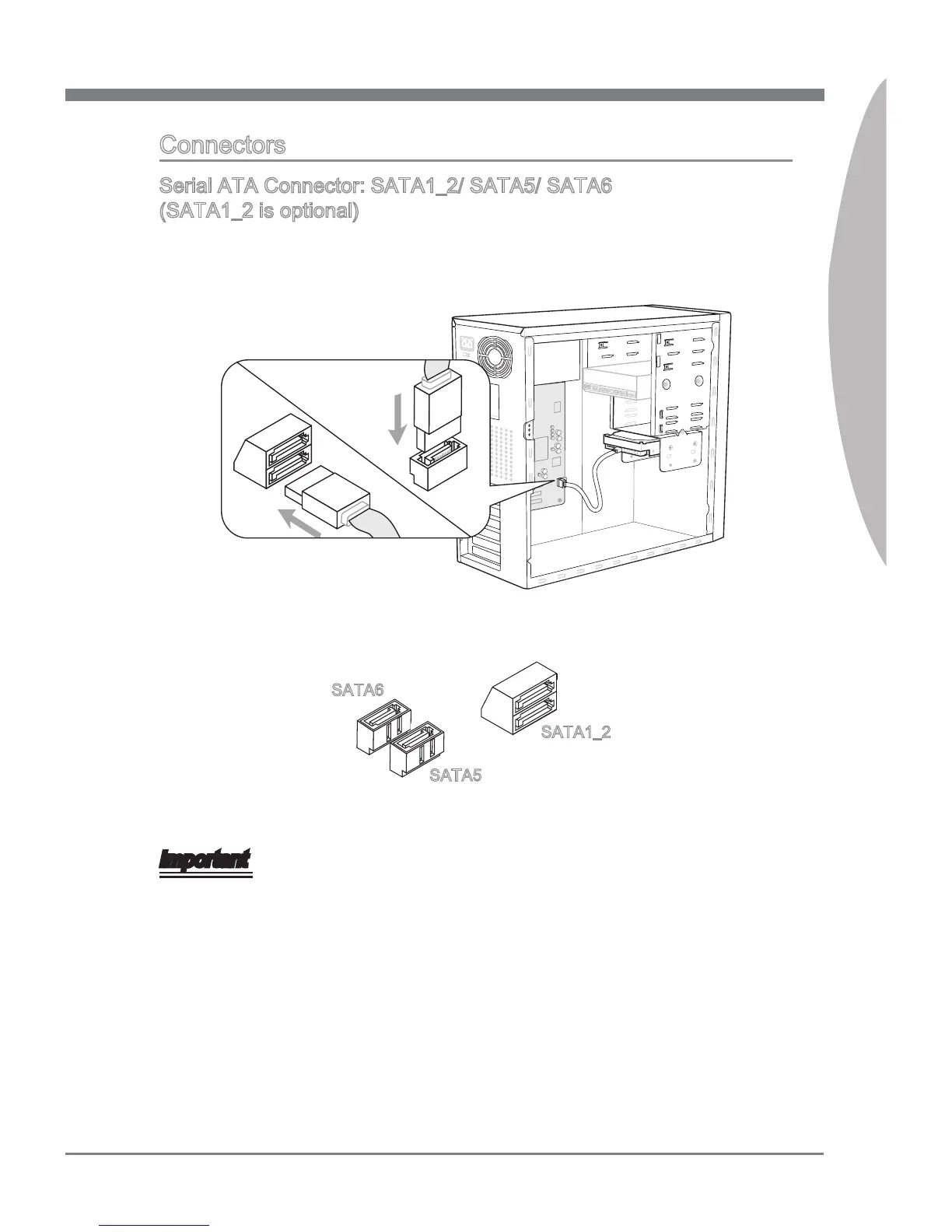

Serial ATA Connector: SATA1_2/ SATA5/ SATA6
(SATA1_2 is optional)
This connector is a high-speed Serial ATA interface port. Each connector can connect
to one Serial ATA device.
* The MB layout in this gure is for reference only.
SATA1_2
SATA5
SATA6
Important
Please do not fold the Serial ATA cable into a 90-degree angle. Otherwise, data loss
may occur during transmission.
