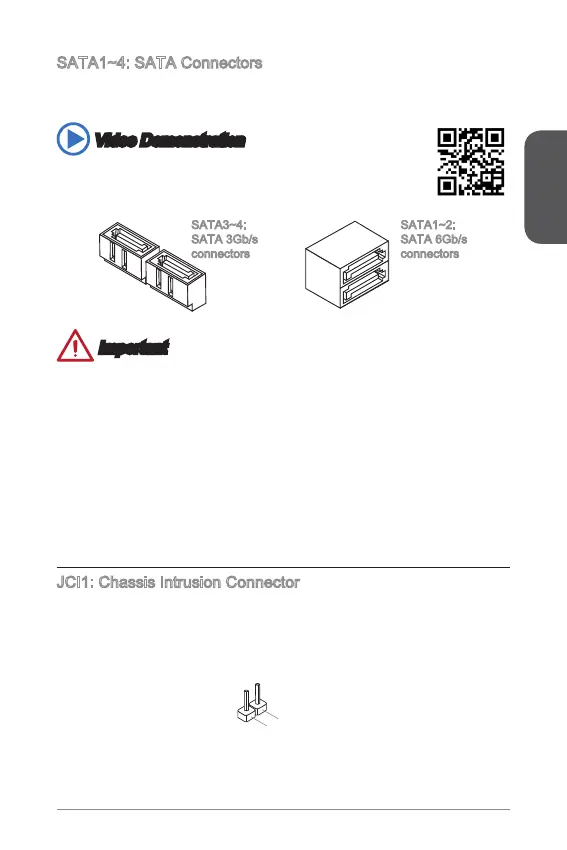

SATA~4: SATA Connectors
This connector is a high-speed SATA interface port. Each connector can connect to
one SATA device. SATA devices include disk drives (HDD), solid state drives (SSD),
and optical drives (CD/ DVD/ Blu-Ray).
Video Demonstration
Watch the video to learn how to Install SATA HDD.
http://youtu.be/RZsMpqxythc
SATA~2:
SATA 6Gb/s
connectors
SATA3~4:
SATA 3Gb/s
connectors
Important
Many SATA devices also need a power cable from the power supply. Such devices
include disk drives (HDD), solid state drives (SSD), and optical drives (CD / DVD /
Blu-Ray). Please refer to the device’s manual for further information.
Many computer cases also require that large SATA devices, such as HDDs, SSDs,
and optical drives, be screwed down into the case. Refer to the manual that came
with your computer case or your SATA device for further installation instructions.
Please do not fold the SATA cable at a 90-degree angle. Data loss may result
during transmission otherwise.
SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the 󰘱at connector be connected to the motherboard for space
saving purposes.
JCI: Chassis Intrusion Connector
This connector connects to the chassis intrusion switch cable. If the computer case
is opened, the chassis intrusion mechanism will be activated. The system will record
this intrusion and a warning message will 󰘱ash on screen. To clear the warning, you
must enter the BIOS utility and clear the record.
2
.
C
I
N
T
R
U
1
.
G
r
o
u
n
d
•
•
•
•

MSI H81M-E34 Series Specifications

General

Form Factor	Micro ATX
Chipset	Intel H81
Socket	LGA 1150
Memory Slots	2 x DIMM
Maximum Memory	16GB
Storage Interface	2 x SATA 6Gb/s, 2 x SATA 3Gb/s
Memory Standard	DDR3 1600/1333 MHz
Expansion Slots	1 x PCIe 2.0 x16, 2 x PCIe 2.0 x1
USB Ports (Rear)	2 x USB 3.0, 2 x USB 2.0
USB Ports (Front)	2 x USB 2.0
Audio	Realtek ALC887
LAN	Realtek RTL8111G
Video Outputs	1 x HDMI, 1 x VGA
