En-6
MS-7388 Mainboard
Installing CPU Cooler Set
When you are installing the CPU, make sure the CPU has a heat sink and a cooling
fan attached on the top to prevent overheating. If you do not have the CPU cooler,
consult your dealer before turning on the computer.

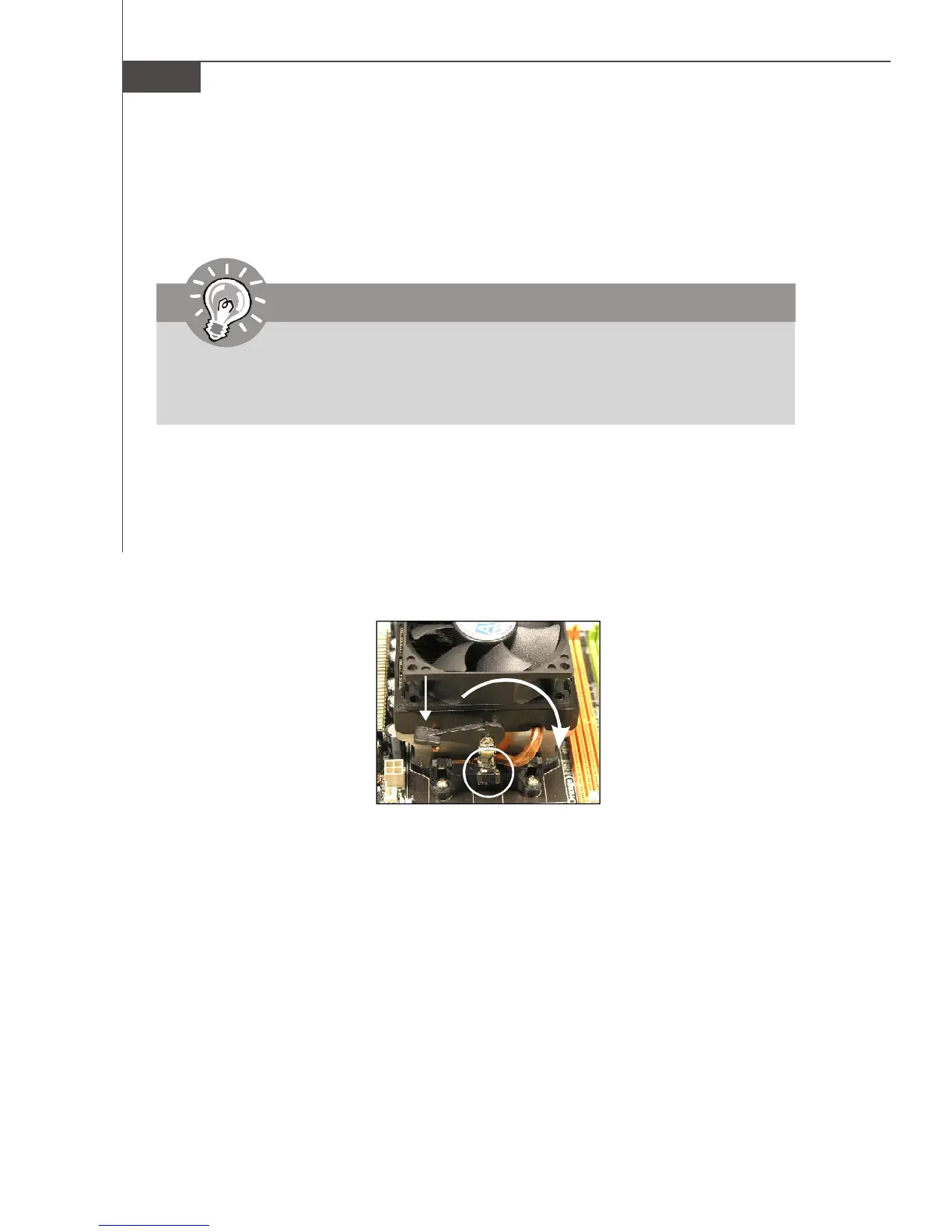

1.Position the cooling set onto the retention mechanism. Hook one end of the clip to
hook first.
2.Then press down the other end of the clip to fasten the cooling set on the top of the
retention mechanism. Locate the Fix Lever and lift up it .
3.Fasten down the lever.
4.Attach the CPU Fan cable to the CPU fan connector on the mainboard.
Fixed Lever
Important
Mainboard photos shown in this section are for demonstration of the CPU/ cooler
installation only. The appearance of your mainboard may vary depending on the
model you purchase.
