En-13
English

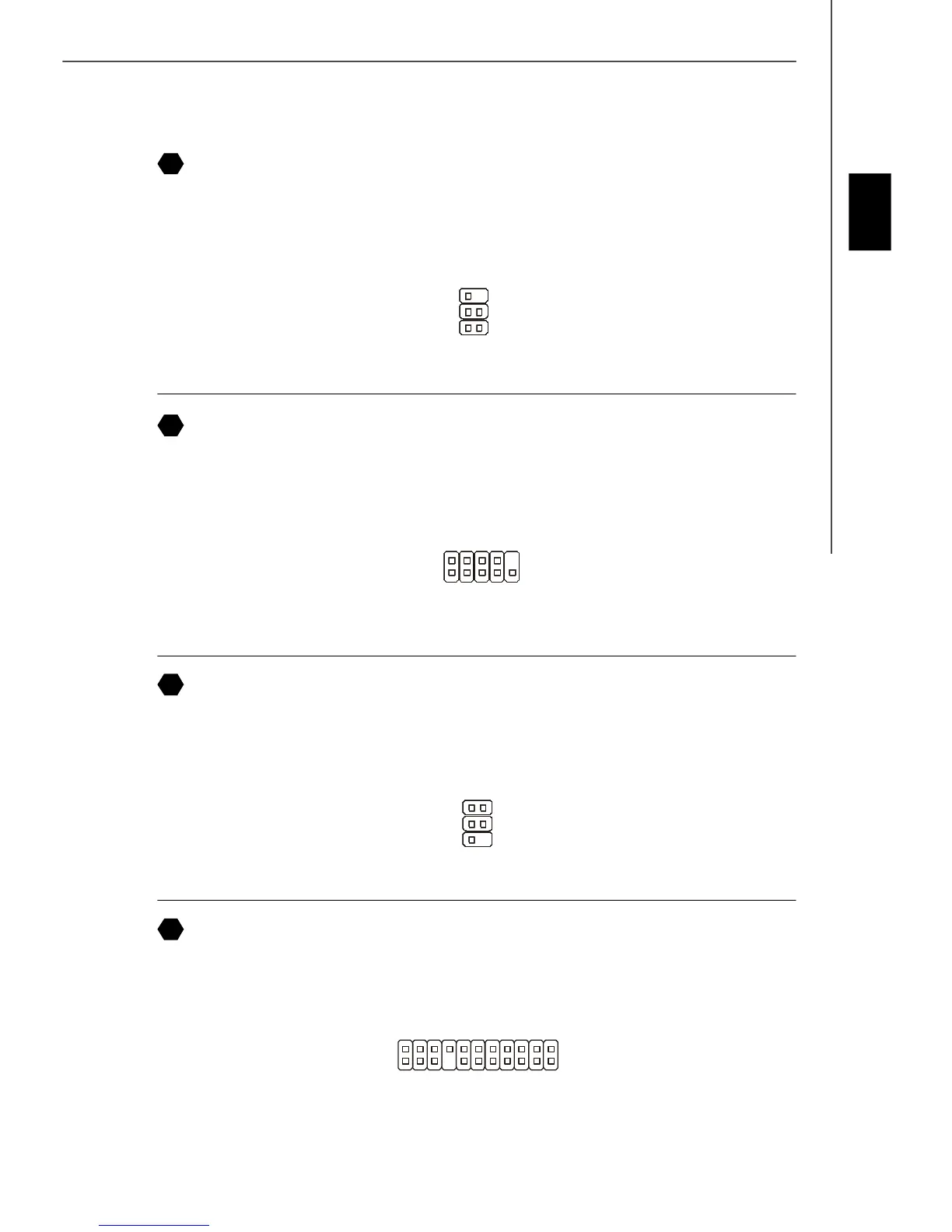

Infrared Module Connector
This connector allows you to connect to infrared module and is compliant with Intel
®
Front Panel I/O Connectivity Design Guide. You must configure the setting through the
BIOS setup to use the infrared function.
Serial Port Connector
This connector is a 16550A high speed communication port that sends/receives 16
bytes FIFOs. You can attach a serial device.
TV-Out Connector
This connector is for you to attach an optional TV-Out bracket that offers some types of
TV-Out connectors. Select the appropriate one to connect to an television.
6
5
2
1
NC
VCC5
IRTX
NC
Ground
IRRX
16
17
18
3
1 4
Ground
Yout
Cout
COMP or CVBS
Ground (5)
VoIP Card Connector
This connector connects to the VoIP card. Please refer to the instruction of the VoIP
card.
19
1
9
2
DCD
DSR
SOUT
DTR
Ground
SIN
RTS
CTS
RI
