MSI MAG B650 TOMAHAWK WIFI User Manual

32

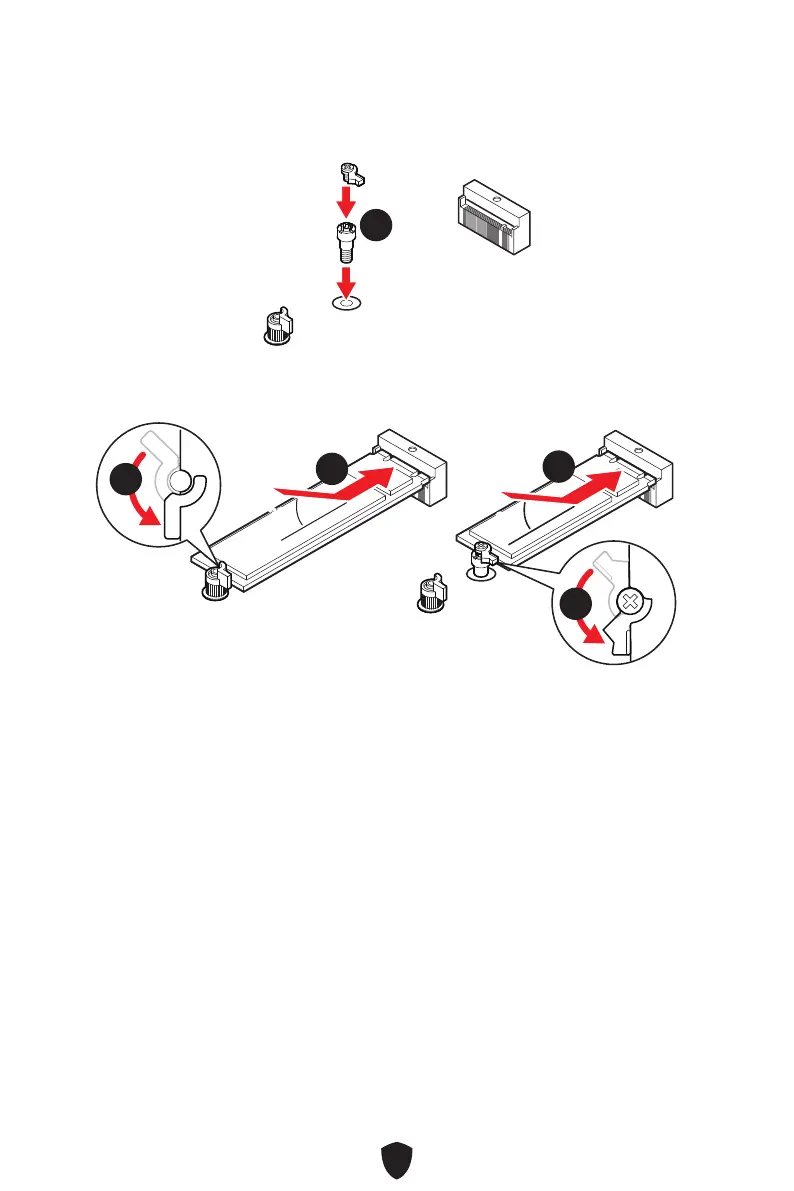

Installation du module M.2 dans le slot M2_2
1. Si vous souhaitez installer un SSD M.2 2260, veuillez installer le kit de clips EZ M.2
fourni dans le trou de vis 2260. Ignorez cette étape si vous installez un SSD 2280.
11
2. Insérez votre SSD M.2 dans le slot M.2 à un angle de 30 degrés.
3. Faites pivoter le clip EZ M.2 pour fixer le SSD M.2.
30º30º
30º30º
SSD 2280
SSD 2260
33
22
22
33

MSI MAG B650 TOMAHAWK WIFI Specifications

General

Processor socket	Socket AM5
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
ECC	No
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600 MHz
RAID levels	0, 1, 10
RAID support	Yes
Supported storage drive interfaces	M.2, SATA
Parallel processing technology support	-
Number of SATA III connectors	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
LAN controller	Realtek RTL8125B
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC4080
Component for	PC
Product color	Black
Motherboard chipset	AMD B650
PC health monitoring	Fan
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 11 x64

Weight and Dimensions

Depth	243.84 mm
Width	304.8 mm
