MSI MAG B660 TOMAHAWK WIFI DDR4

23

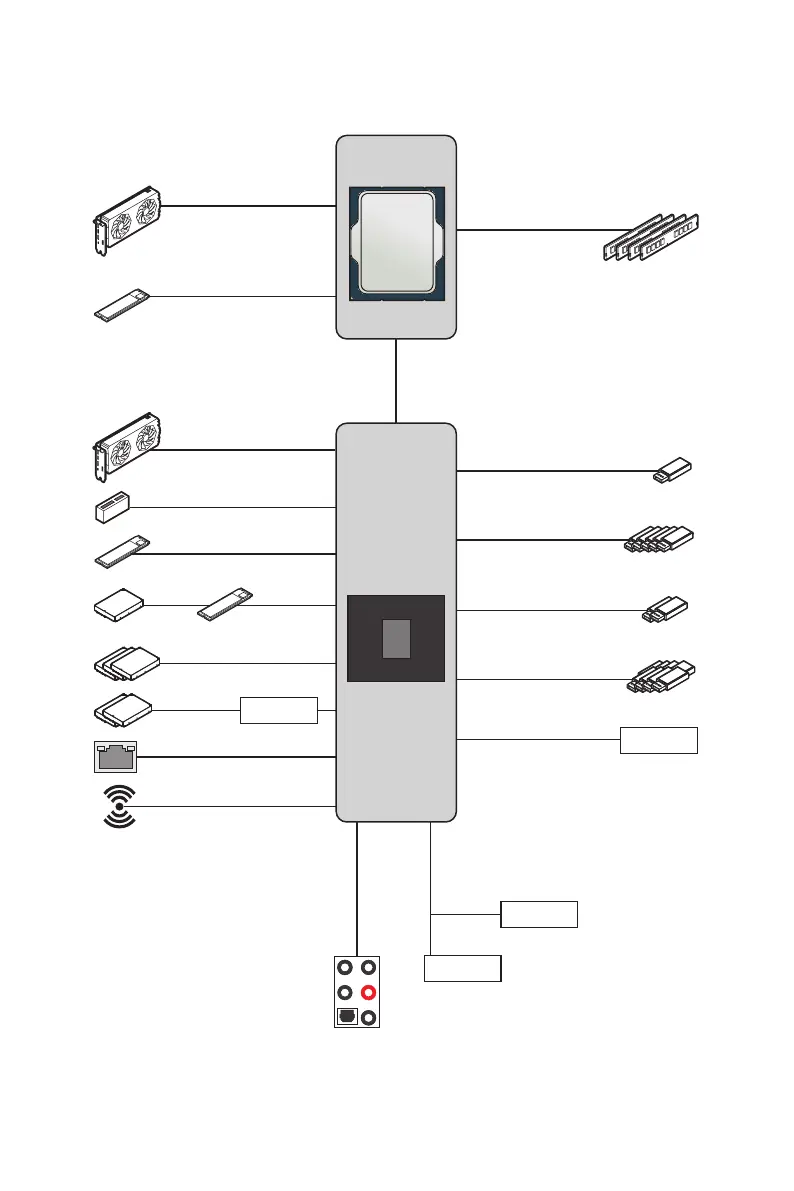

Block Diagram
Block Diagram
CPU
PCH
PCI_E1
PCIe 4.0 x16
DDR4 2Channel
DIMM A1/A2
DIMM B1/B2
DMI x4
Intel WiFi
Intel LAN
HD Audio
ALC1220P
M2_1
SATA5/6/8
SATA7
SATAA/B
M2_3
PCI_E2
PCIe 3.0 x4
SIO 6687
TPM
ASM1061
SPI
MCU
USB 3.2 Gen 2 10Gbps
USB 3.2 Gen 1 5Gbps
USB 2.0
USB3.2 Gen2x2 20Gbps
PCI_E3
PCIe 3.0 x1
M2_2
⚠
Important
The icons above are for reference only.
