BIOS Setup
Updating BIOS with Flash BIOS Button
1. Please download the latest BIOS file that matches your motherboard model from
the MSI® website.
2. Rename the BIOS file to MSI.ROM, and save it to the root of your USB flash drive
(FAT32 format).
3. Connect the power supply to CPU_PWR1 and ATX_PWR1. (No need to install CPU
and memory.)
4. Plug the USB flash drive that contains the MSI.ROM file into the Flash BIOS Port
on the rear I/O panel.
5. Press the Flash BIOS Button to flash BIOS, and the LED starts flashing.
6. The LED will be turned off when the process is completed.
⚠
Important
Only the FAT32 format USB flash drive supports updating BIOS by Flash BIOS Button.

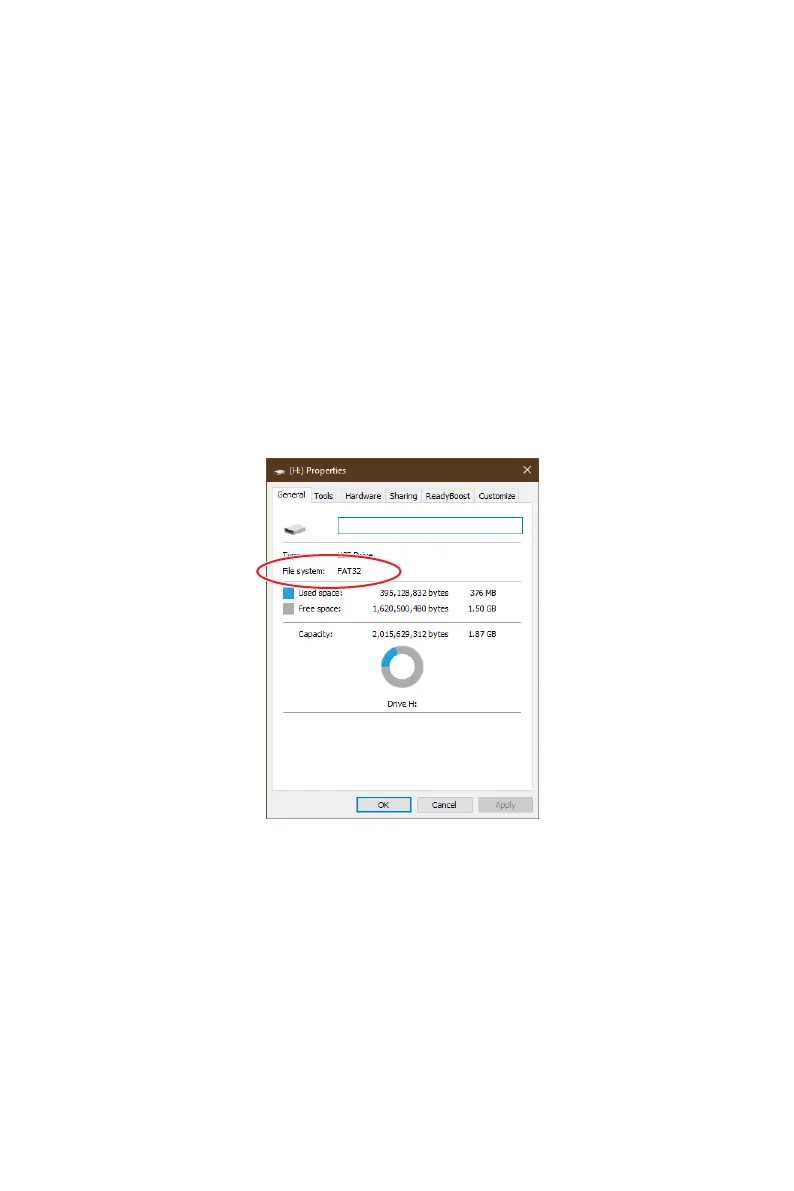

To check your drive, go to Windows Explorer, right click on the drive icon and go to
Properties.

MSI MAG X570 TOMAHAWK WIFI Specifications

General

Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Supported processor sockets	Socket AM4
Audio chip	Realtek ALC1200
Cooling type	Active
Component for	PC
Motherboard chipset	AMD X570
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4533, 4600 MHz
PCI Express x16 (Gen 4.x) slots	2
Number of SATA II connectors	0
Number of SATA III connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
LAN controller	Realtek RTL8125B-CG
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.0
Ethernet interface type	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
HDMI version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
DirectX version	12.0
Maximum graphics card memory	2048 MB
Parallel processing technology support	CrossFire
BIOS type	UEFI AMI
ACPI version	6.1
BIOS memory size	256 Mbit
System Management BIOS (SMBIOS) version	2.8
Cables included	SATA
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	305 mm
Width	244 mm
