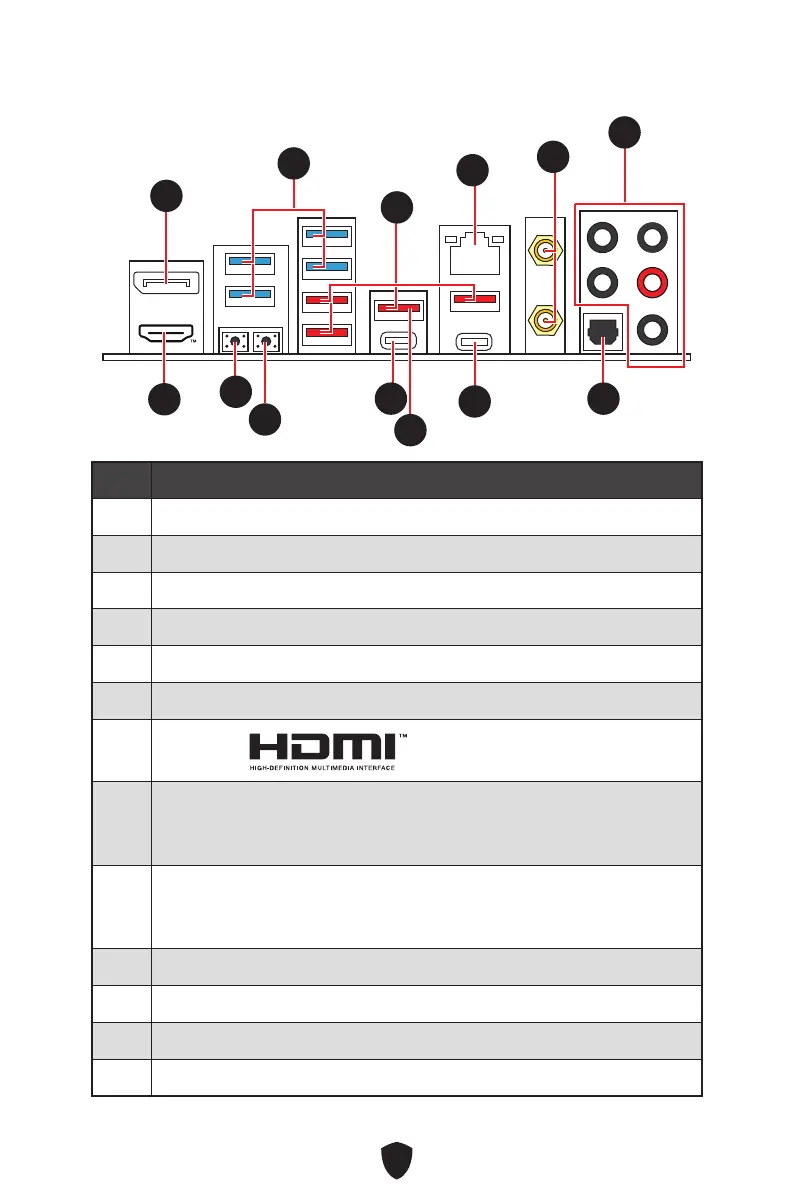

Back Panel Connectors
Item Description
1 DisplayPort
2 USB 3.2 Gen 1 5Gbps Type-A ports (From Hub GL3523)
3 USB 3.2 Gen 2 10Gbps Type-A ports (From Z790 chipset)
4 2.5 Gbps LAN (RJ45) port
5 Wi-Fi antenna connectors
6 Audio jacks
7
HDMI™ port
8
Clear CMOS button
Power off your computer. Press and hold the Clear CMOS button for
about 5-10 seconds to reset BIOS to default values.
9
Flash BIOS button
Please refer to page 57 for details about updating BIOS with Flash BIOS
button.
10 USB 3.2 Gen 2 10Gbps Type-C port (From Z790 chipset)
11 Flash BIOS port
12 USB 3.2 Gen 2x2 20Gbps Type-C port (From Z790 chipset)
13 Optical S/PDIF Out connector
