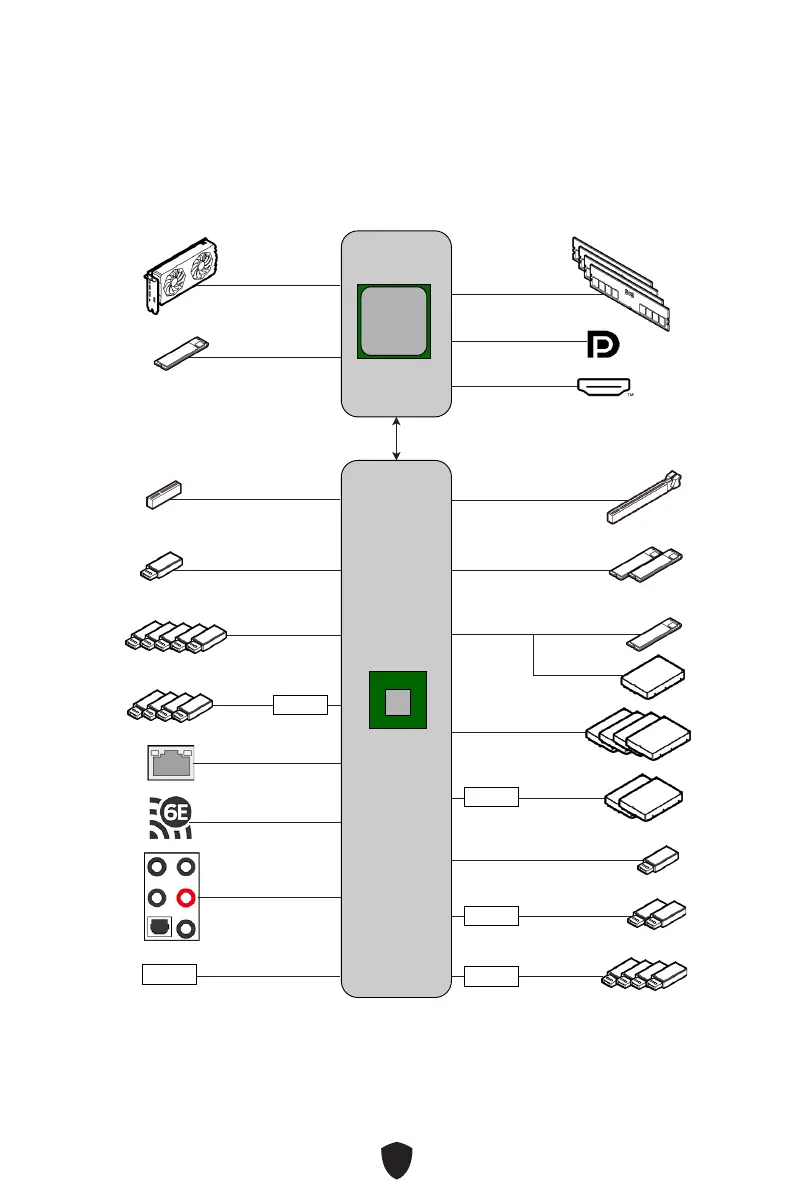

Block Diagram
MAG Z790 TOMAHAWK WIFI DDR4
PCI_E1
PCIe 5.0x16
DDR4
DIMM A1/A2
DIMM B1/B2
M.2_1
GEN 4x4
(PCIe Only)
M.2_2/ M.2_4
GEN4 x4 (PCIe Only)
USB3.2 Gen2 10Gbps
(4Type-A + 1Type-C)
Intel 2.5Gbps
SATA_5_6_7_8
SATA_A1_A2
ASM1061
WiFi 6E
PCH
HD Audio
ALC4080
CPU
DMI x8
M.2_3
GEN4 x4 (PCIe + SATA)
USB3.2 Gen1 5Gbps
(Front Type-A)
GL3523
USB3.2 Gen1 5Gbps
(Type-A)
USB3.2 Gen2 10Gbps
(Front Type-C)
GL850
USB2.0
(Front Type-A)
USB3.2 Gen2x2 20Gbps
(Type-C)
PCI_E2
PCIe 3.0x 1
PCI_E3
PCIe 4.0x 4
SPI
SATA_1
GL3523
HDMI™ 2.1
(4K@60Hz)
DP 1.4
(8K@60Hz)
