35
Overview of Components

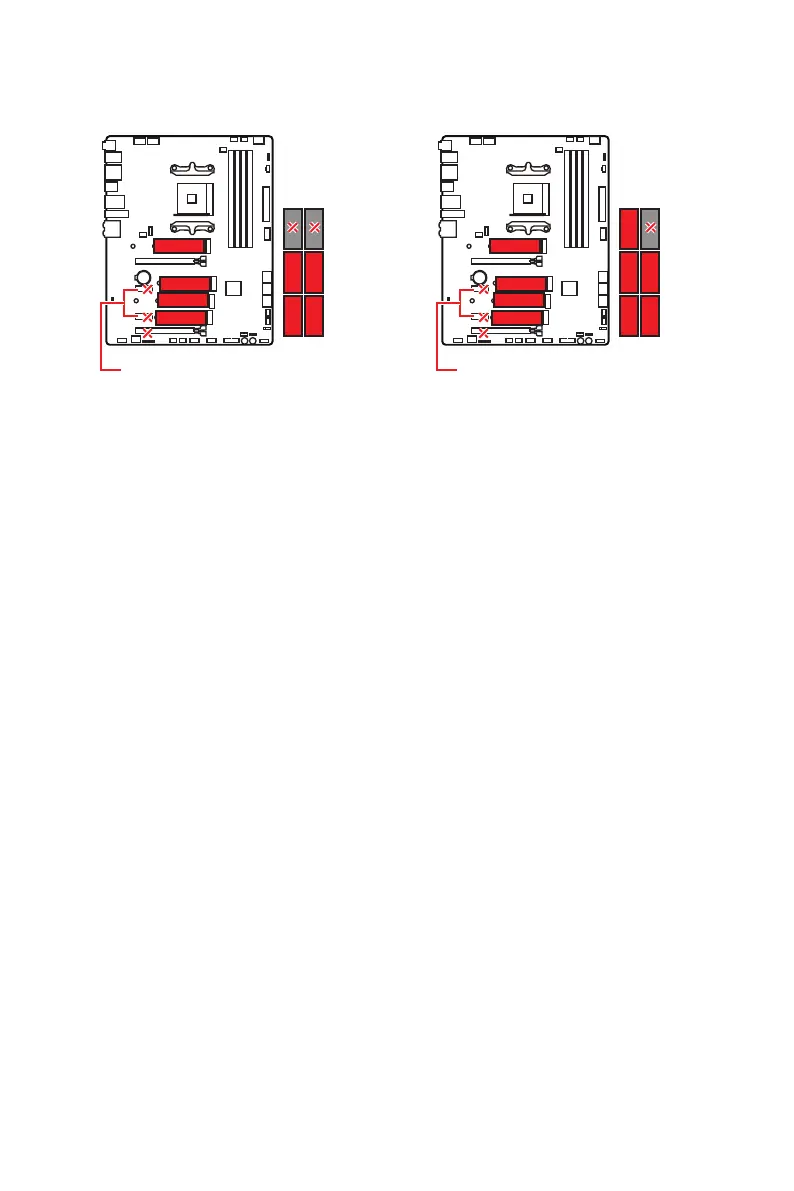

4xM.2 PCIe SSDs + 4xSATA HDDs
For Chipset mode these two
PCIe x1 slots are un-available.
(Default)
For CPU mode these two PCIe x1
slots are available.
For Chipset mode these two
PCIe x1 slots are un-available.
(Default)
For CPU mode these two PCIe x1
slots are available.
M.2 PCIe M.2 SATA
M.2 PCIe M.2 PCIe
M.2 PCIe M.2 SATA
M.2 PCIe M.2 PCIe
SATA2 SATA2
SATA6
SATA1 SATA1
SATA4 SATA4 SATA3 SATA3
2xM.2 SATA SSD + 2xM.2 PCIe SSD
+ 5xSATA HDDs
