Wireless Card Assembly

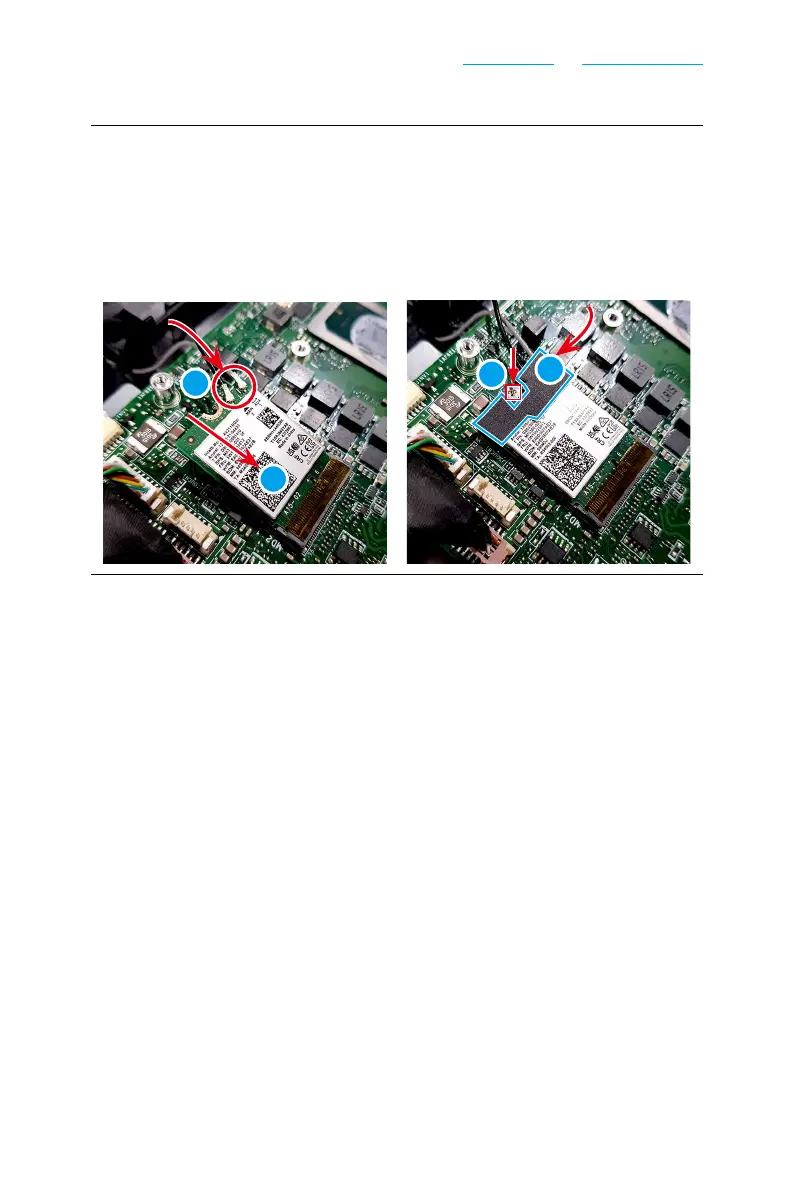

1. Align the notch on the wireless card with the key on the slot, and insert the
wireless card ❶ into the slot.
2. Gently push the wireless card downwards and use a cross-head screwdriver to
secure the card with the screw
❷.
3. Connect the antenna cables
❸ to the wireless card.
4. Replace and secure the wireless card clip
❹ onto the wireless card.
3
1
2
4
