11

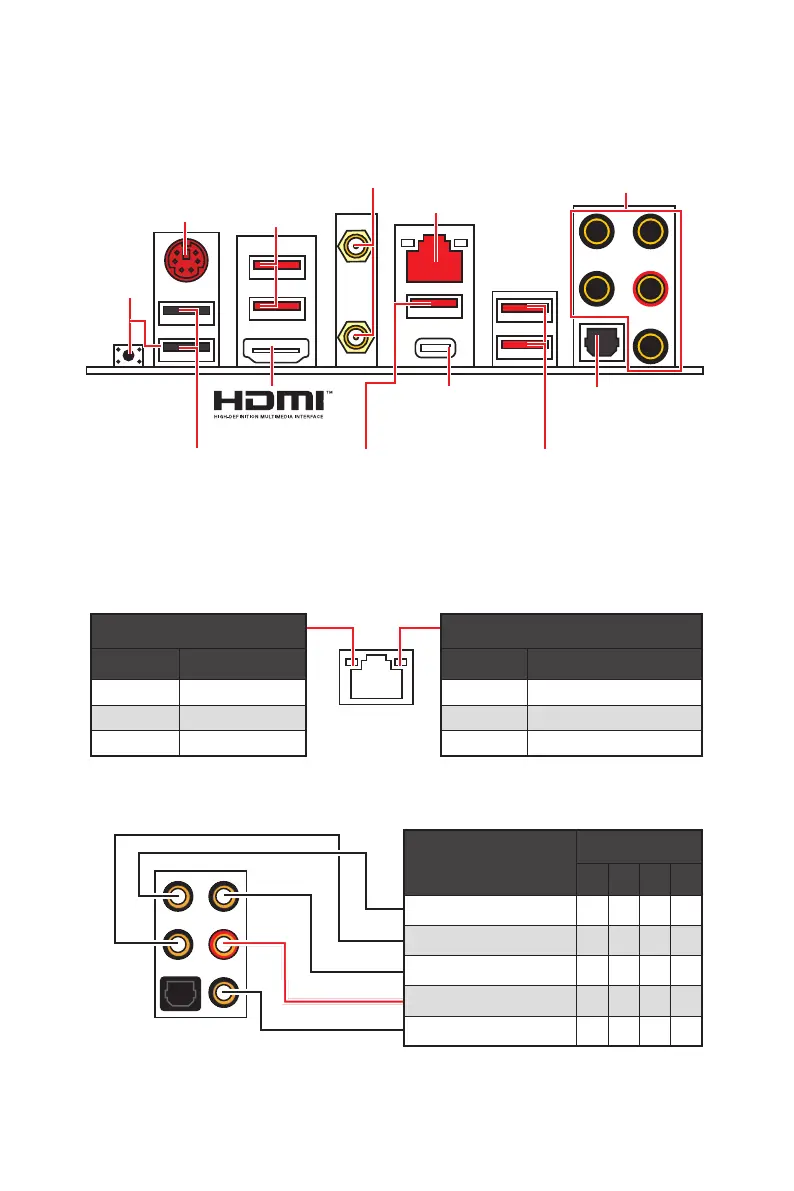

Rear I/O Panel
USB 3.2 Gen2
Type-C
USB 3.2 Gen2
Type-A
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
Center/ Subwoofer Out ● ●
Rear Speaker Out ● ● ●
Line-In/ Side Speaker Out ●
Line-Out/ Front Speaker Out ● ● ● ●
Mic In
(●: connected, Blank: empty)
Rear I/O Panel
PS/2
LAN
USB 2.0 Type-A
Audio Ports
Optical S/PDIF-Out
Flash BIOS
Button & Port
USB 3.2 Gen2
Type-A
USB 3.2 Gen1
Type-A
y Flash BIOS Button/Port - Please refer to page 33 for Updating BIOS with Flash BIOS
Button.
Wi-Fi Antenna
connectors
