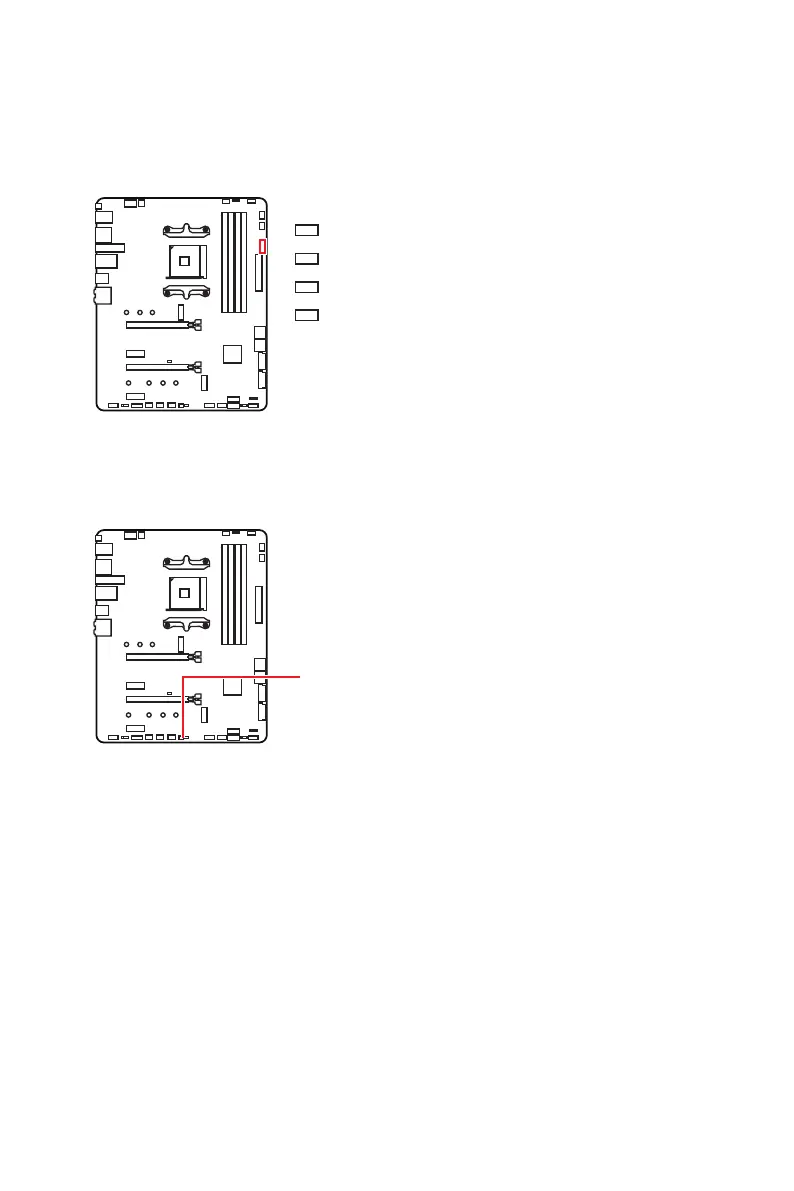

Onboard LEDs
EZ Debug LED
These LEDs indicate the debug status of the motherboard.
CPU - indicates CPU is not detected or fail.
DRAM - indicates DRAM is not detected or fail.
VGA - indicates GPU is not detected or fail.
BOOT - indicates the booting device is not detected
or fail.
Onboard LEDs
JPWRLED1: LED light demonstration power input connector
This connector is used by retailers to demonstrate onboard LED lights.
JPWRLED1 - LED power input
