MSI MPG X670E CARBON WIFI - Installing M.2 Module into M2_2 Slot

33

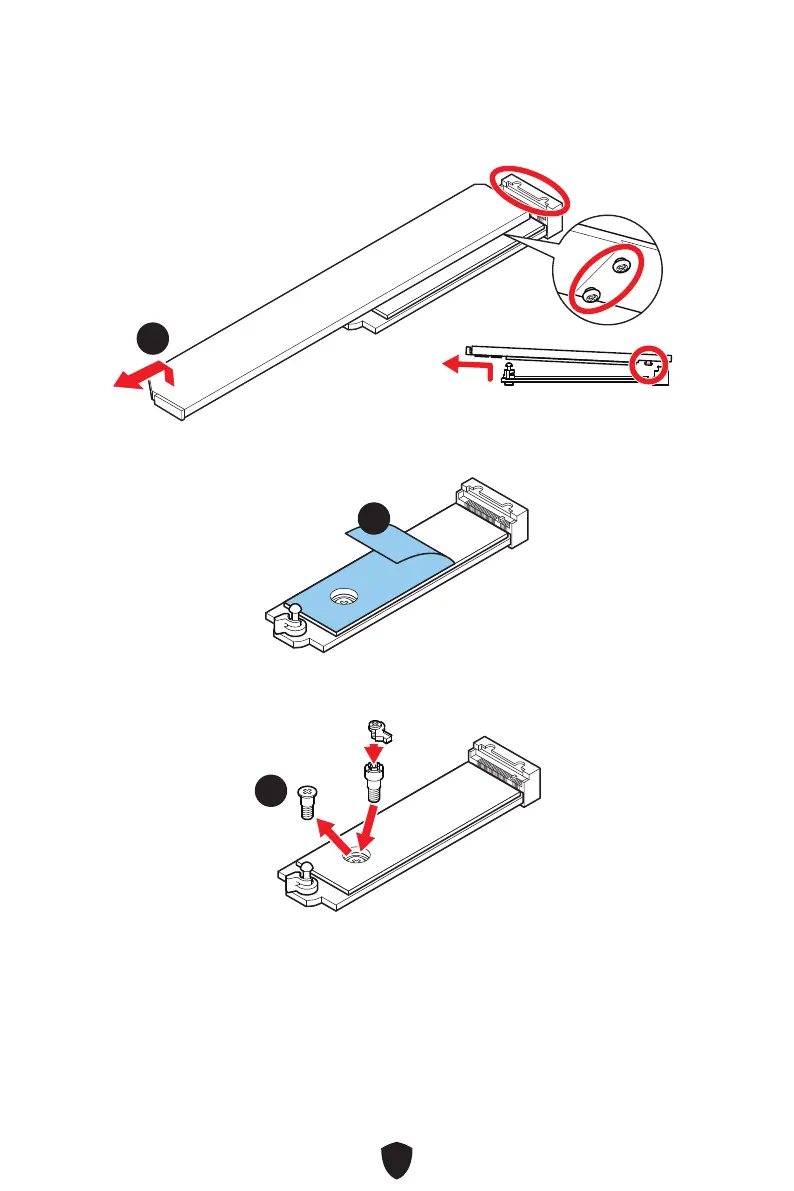

2. Slightly lift up the end part of Screwless M.2 Shield Frozr heatsink and move it
forward to uninstall the heatsink.
22
3. Remove the protective films from the M.2 thermal pads on the M.2 plate.
33
4. If you install 2260 SSD, remove the screw from the M.2 plate and then install
supplied EZ M.2 Clip kit on the M.2 plate. Skip this step if you install 2280 SSD.
44
2260 SSD
