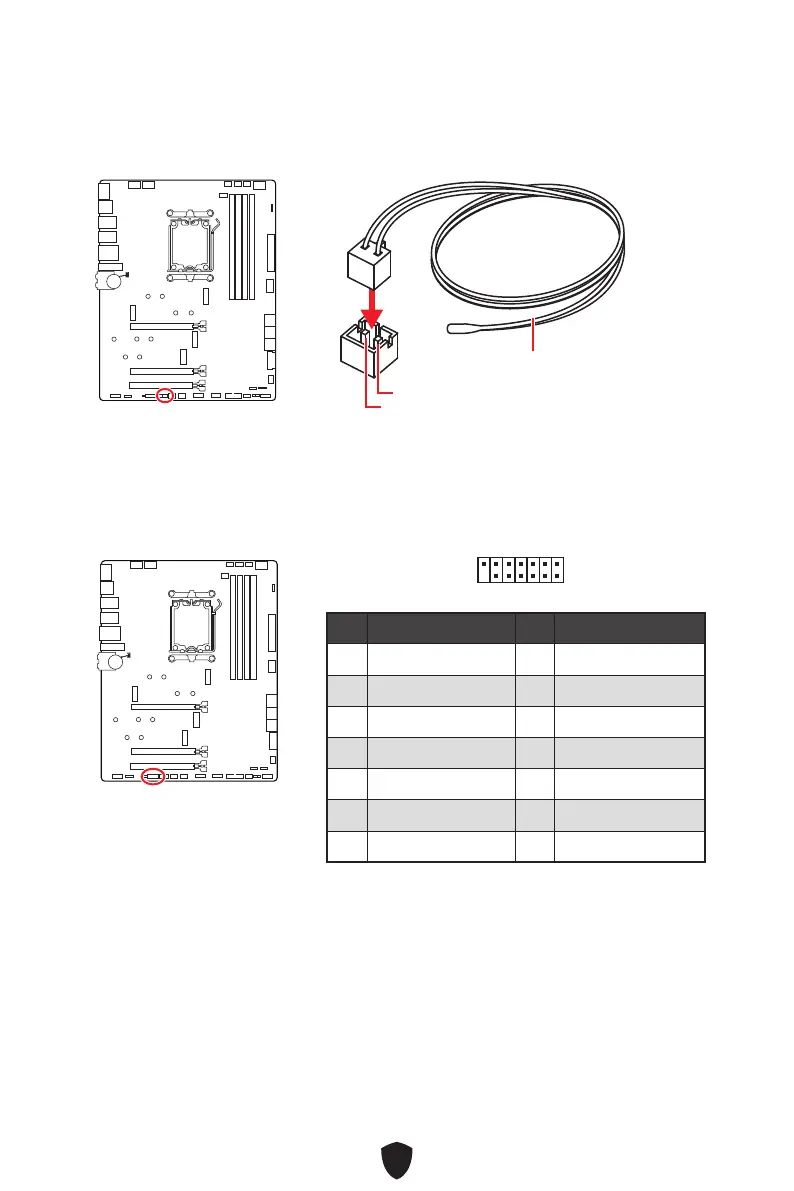

T_SEN1: Thermal Sensor Connector
This connector allows you to connect the thermistor cable and use it to monitor the
temperature of the detection point.
Thermistor cable
GND
Sense
JDASH1 : Tuning Controller Connector
This connector is used to connect an optional Tuning Controller module.
1
2 14
13
Pin Signal Name Pin Signal Name
1 No Pin 2 NC
3 MCU_SMB_SCL_M 4 MCU_SMB_SDA_M
5 VCC5 6 Ground
7 PSIN#_R 8 FP_RST#_R
9 NC 10 OC_FS
11 NC 12 NC
13 CLRCMOS_EN 14 NC
