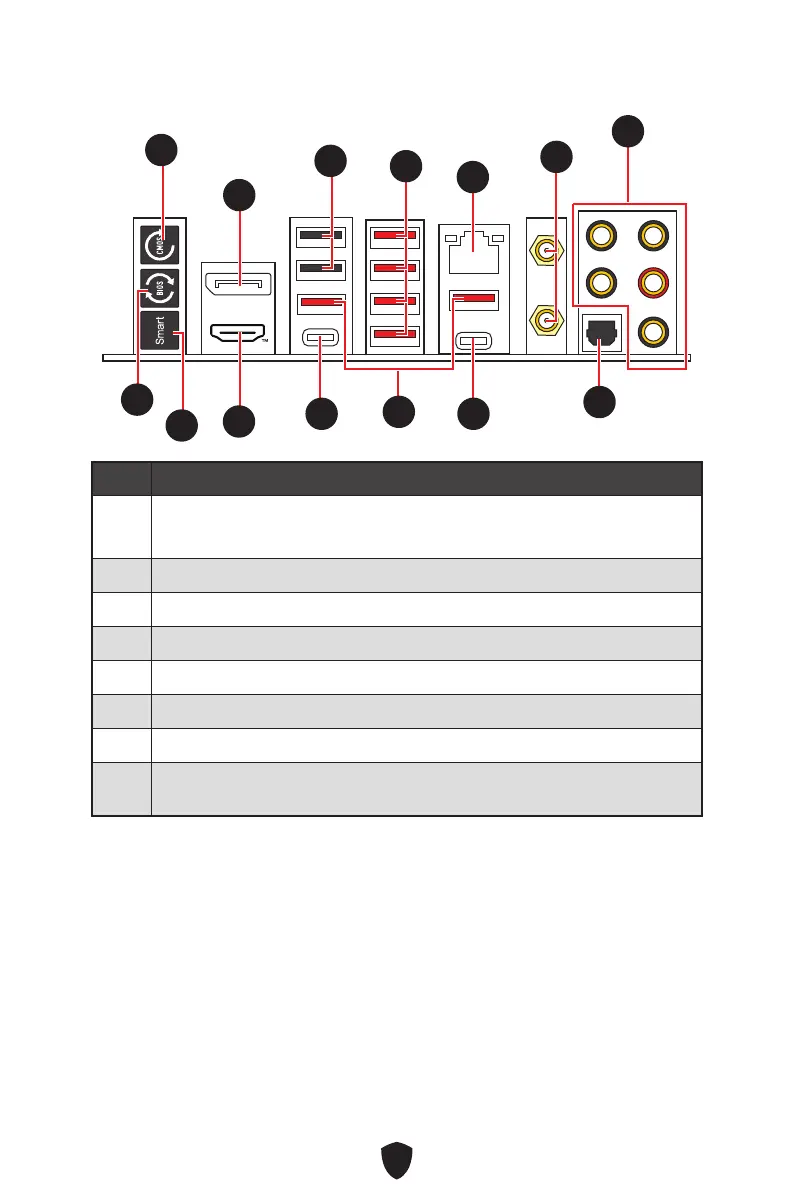

Back Panel Connectors
Item Description
1
Clear CMOS button - Power off your computer. Press and hold the Clear
CMOS button for about 5-10 seconds to reset BIOS to default values.
2 DisplayPort
3 USB 2.0 Type-A ports (From X670 chipset)
4 USB 3.2 Gen 2 10Gbps Type-A ports (From X670 chipset)
5 2.5Gbps LAN (RJ45) port
6 Wi-Fi antenna connectors
7 Audio ports
8
Flash BIOS button - Please refer to page 65 for details about updating BIOS
with Flash BIOS button.
