MSI MPG Z790I EDGE WIFI User Manual

37

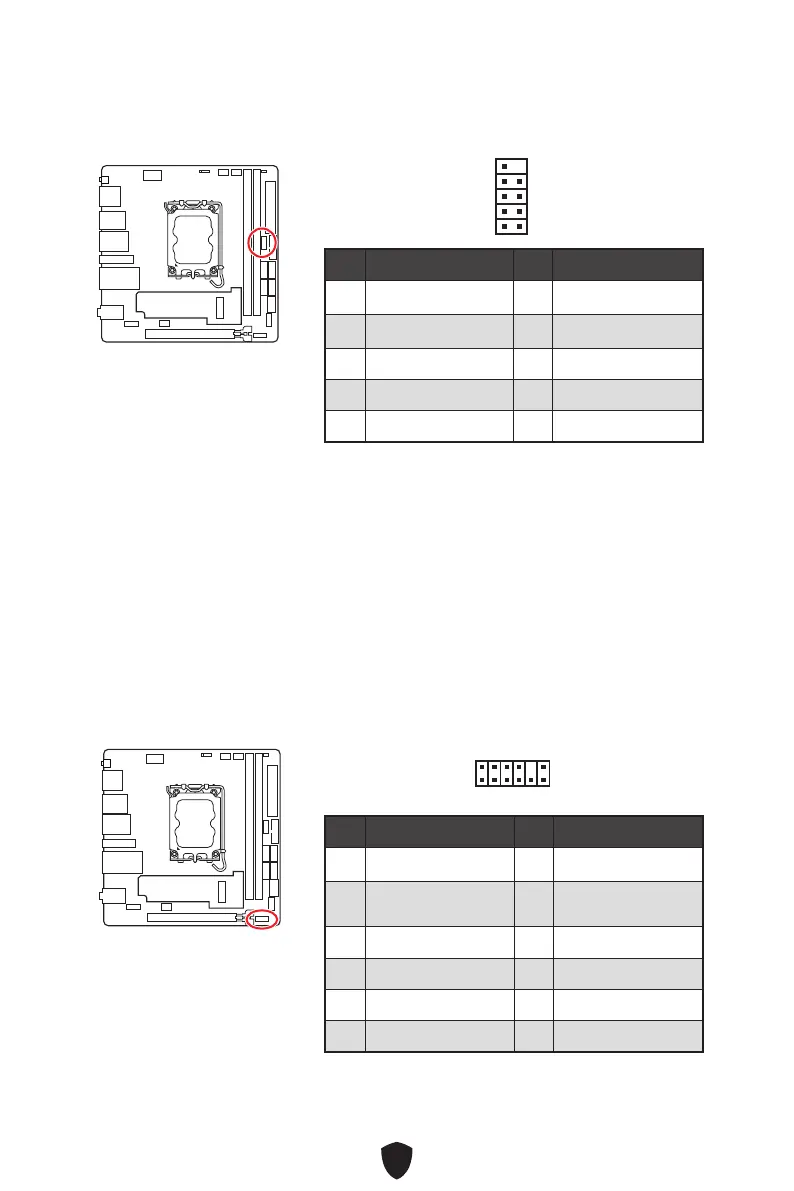

JUSB1: USB 2.0 Connector
This connector allows you to connect USB 2.0 ports on the front panel.

Important
 Note that the VCC and Ground pins must be connected correctly to avoid possible
damage.
 In order to recharge your iPad, iPhone and iPod through USB ports, please install
MSI Center utility.
JTPM1: TPM Module Connector
This connector is for TPM (Trusted Platform Module). Please refer to the TPM security
platform manual for more details and usages.
Pin Signal Name Pin Signal Name
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC
12
10 9
Pin Signal Name Pin Signal Name
1 SPI Power 2 SPI Chip Select
3
Master In Slave Out
(SPI Data)
4
Master Out Slave In
(SPI Data)
5 Reserved 6 SPI Clock
7 Ground 8 SPI Reset
9 Reserved 10 No Pin
11 Reserved 12 Interrupt Request
1
2 12
11

MSI MPG Z790I EDGE WIFI Specifications

General

Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium Gold
Supported processor sockets	LGA 1700
Non-ECC	Yes
Memory channels	Dual-channel
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	4800, 5000, 5200, 5400, 5600, 5800, 6000, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 8000 MHz
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Number of SATA II connectors	0
Number of SATA III connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
RAID levels	0, 5, 10
Internal storage capacity	10 GB
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express
Cables included	SATA
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Component for	PC
Product color	White
Motherboard chipset	Intel Z790
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Parallel processing technology support	Not supported

Weight and Dimensions

Width	170 mm
