M2_1~3: M.2 Slots (Key M)
M2_1

Important
Intel® RST only supports PCIe M.2 SSD with UEFI ROM.
M2_2
M2_3

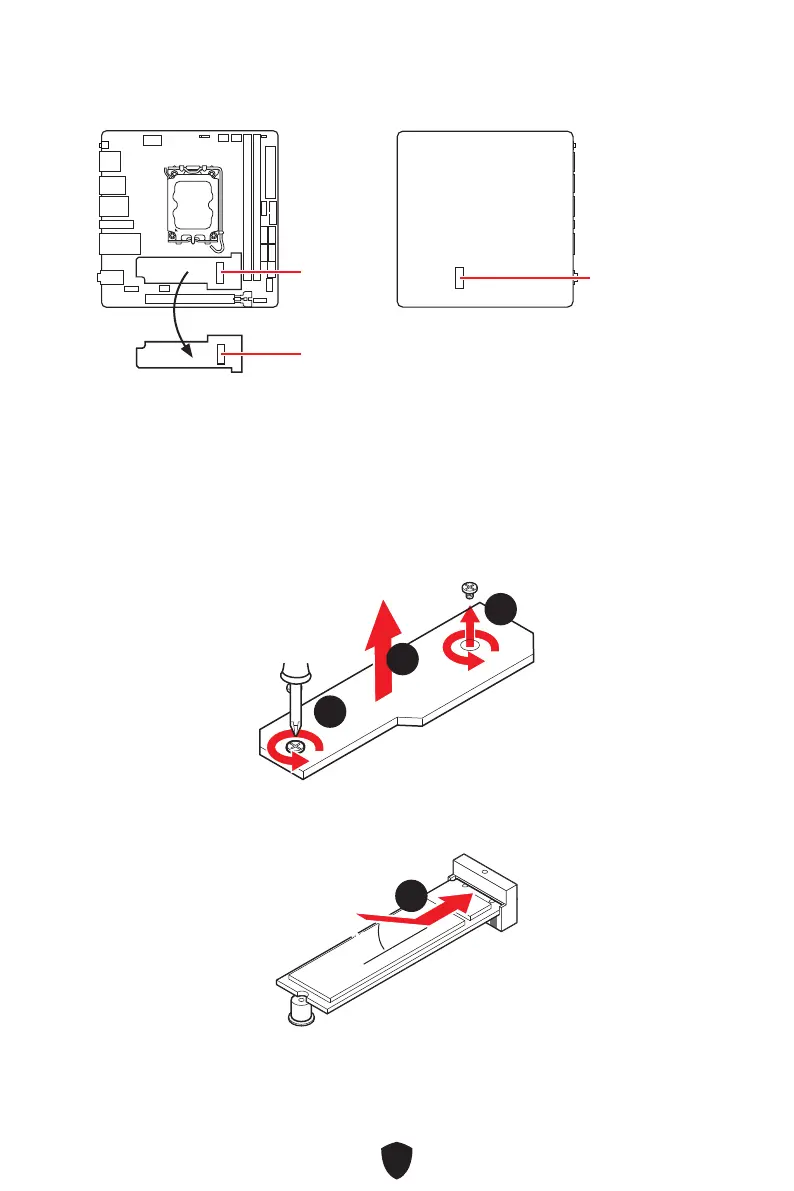

Installing M.2 module into M2_1 slot
1. Loosen the screws of M.2 Shield Frozr heatsink.
2. Lift up the M.2 Shield Frozr heatsink and remove it.
11
11
22
3. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
30º30º
33
