MSI MPower Z97 - JAUD1: Front Panel Audio Connector; M2_1: M.2 Port

Chapter 1
1-25
Getting Started

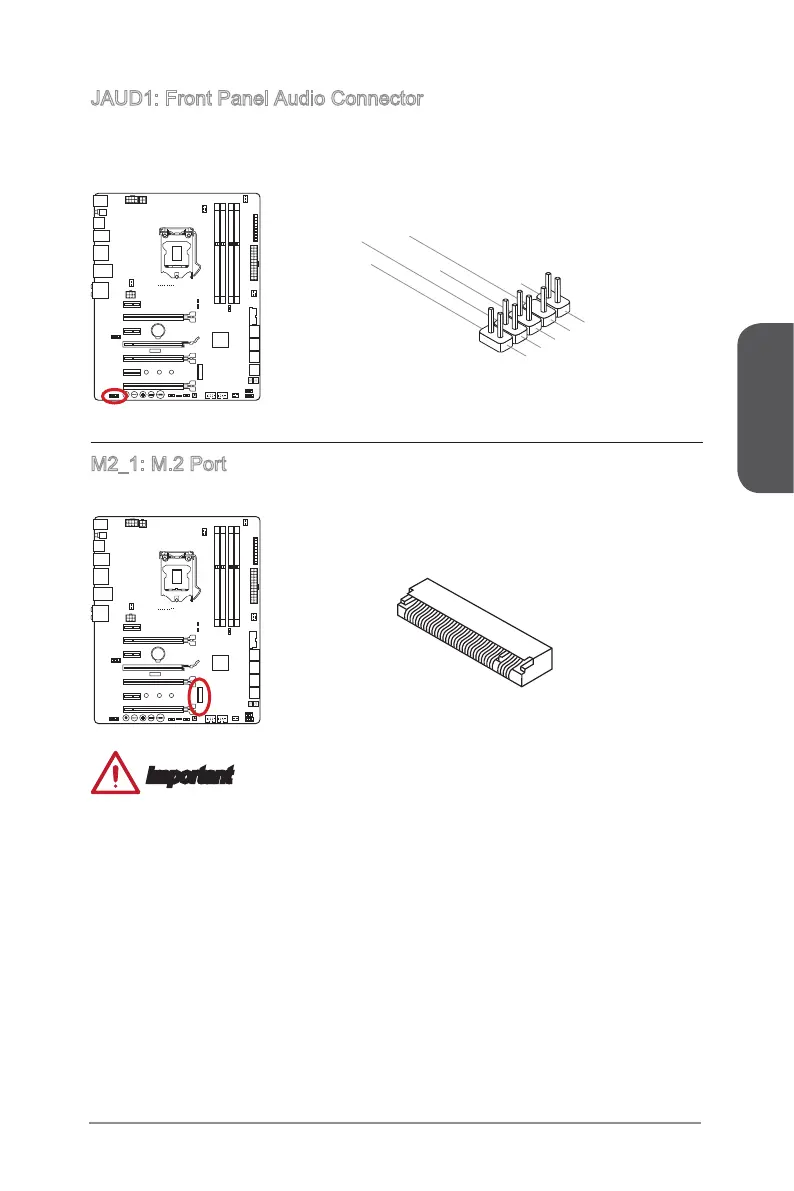

JAUD1: Front Panel Audio Connector
This connector allows you to connect the front audio panel located on your computer
case. This connector is compliant with the Intel
®
Front Panel I/O Connectivity Design
Guide.
1.MIC L
3.MIC R
10.Head
Phone Detection
5.Head Phone
R
7.SENSE_SEN
D
9.Head Phone
L
8.No Pin
6.MIC Detection
4.NC
2
.Ground
M2_1: M.2 Port
The M.2 port supports either M.2 SATA 6Gb/s module or M.2 PCIe module.
Important
 The SATA5 and SATA6 ports will be unavailable when installing a module in the
M.2 port.
 Intel RST only supports PCIe M.2 SSD with UEFI ROM, does not support Legacy
ROM.
 M.2 PCIe interface does not support RAID 0, RAID1, RAID 5 and RAID 10.
