CHAPTER 2 HARDWARE INSTALLATION
2-29

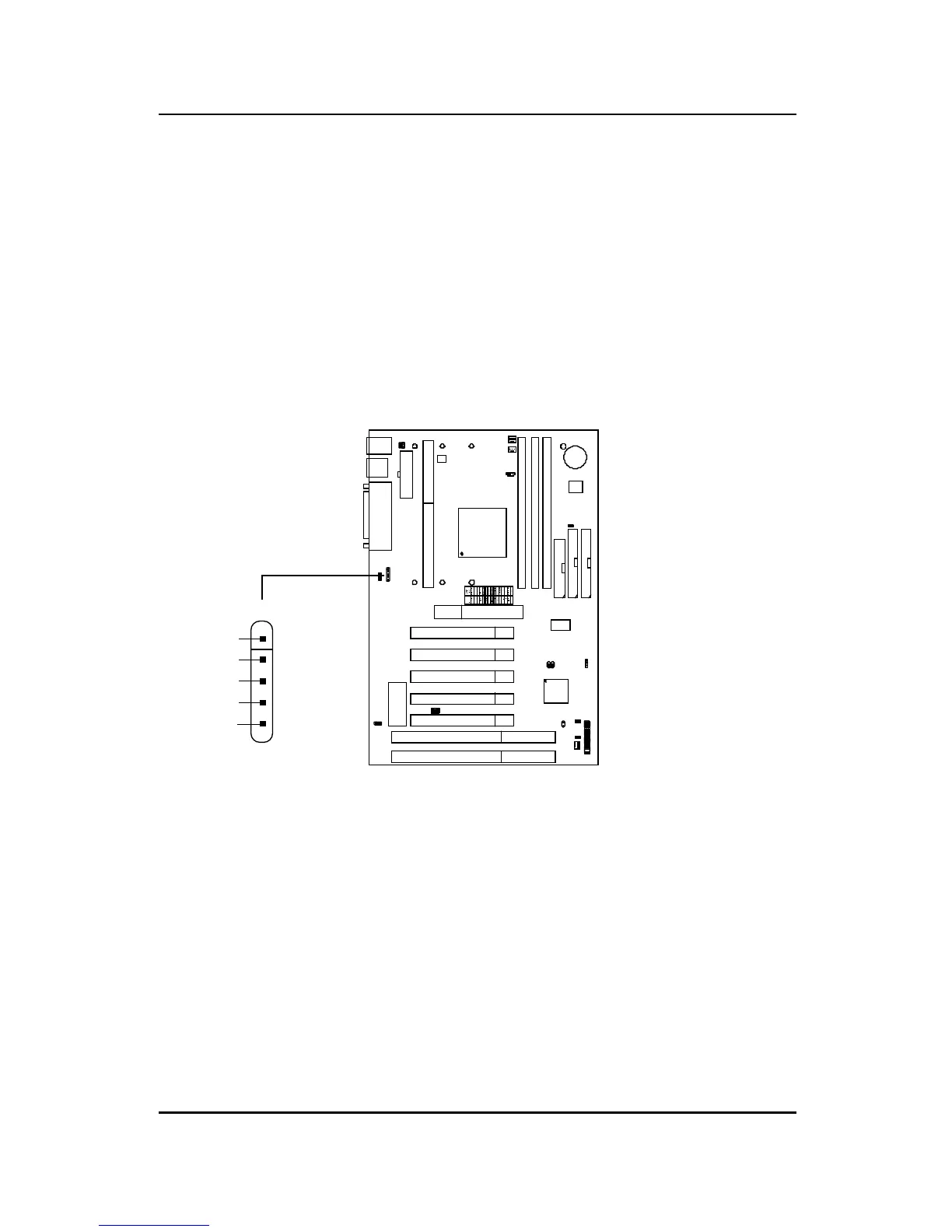

2.9 IrDA Infrared Module Connector: IR1
The mainboard provides one 5-pin infrared (IR) connector for IR modules.
This connector is for optional wireless transmitting and receiving infrared
module. You must configure the setting through the BIOS setup to use the
IR function. FIR and Consumer IR are reserved functions.
VCC
NC
IRRX
GND
IRTX
1
IR1
To Next Page
