PIN SIGNAL PIN SIGNAL
1 USBPWR 2 USBPWR
3 USBP2- 4 USBP3-
5 USBP2+ 6 USBP3+
7 GND 8 GND
9 NC 10 USBOC
JUSB2 Pin Definition

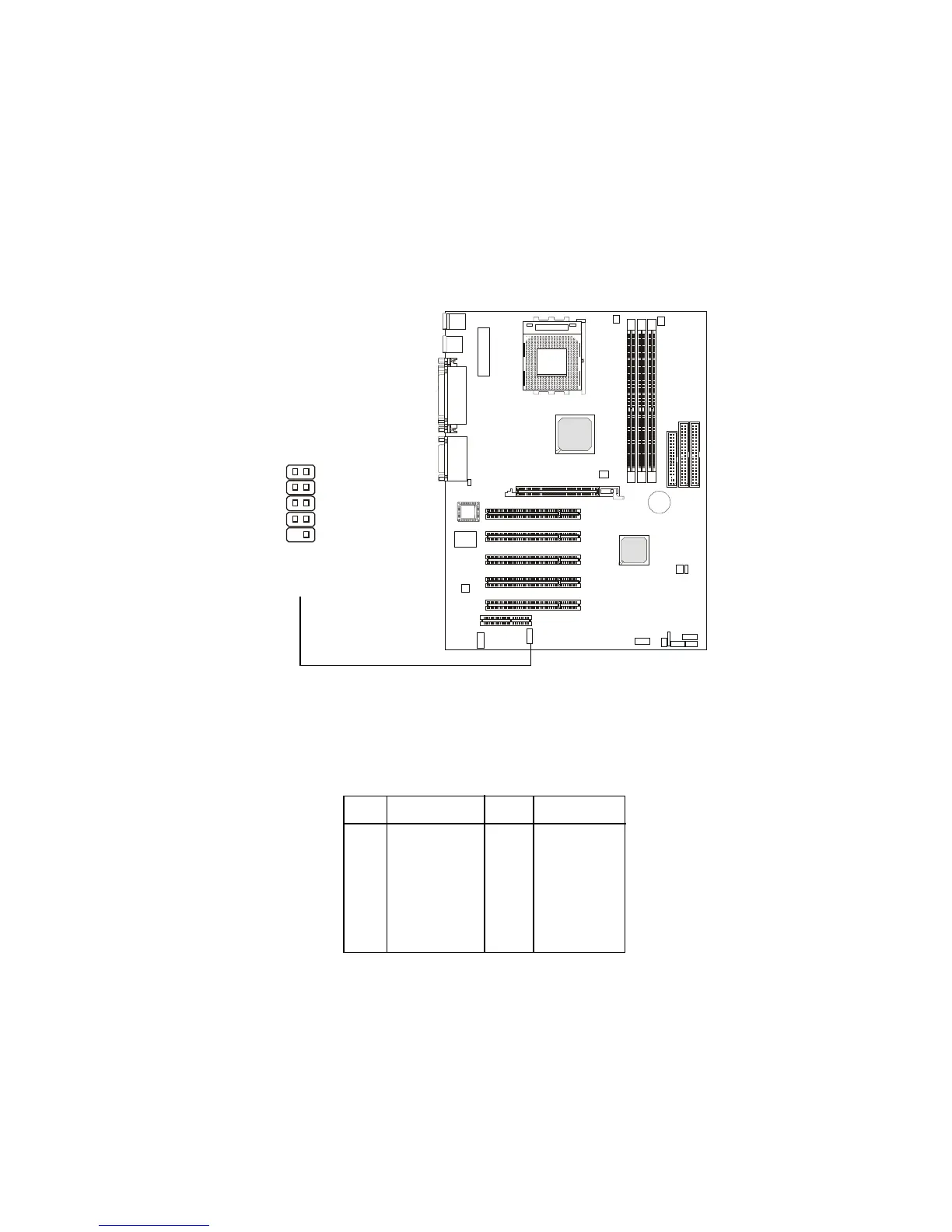

USB Front Panel Connector: JUSB2
The mainboard provides a Universal Serial Bus (USB) pin header that
allows you to connect an optional USB port for front panel. JUSB2 is compli-
ant with Intel
®
Front Panel I/O Connectivity Design Guide.
1
9
2
10
JUSB2
