Hardware Setup
2-21

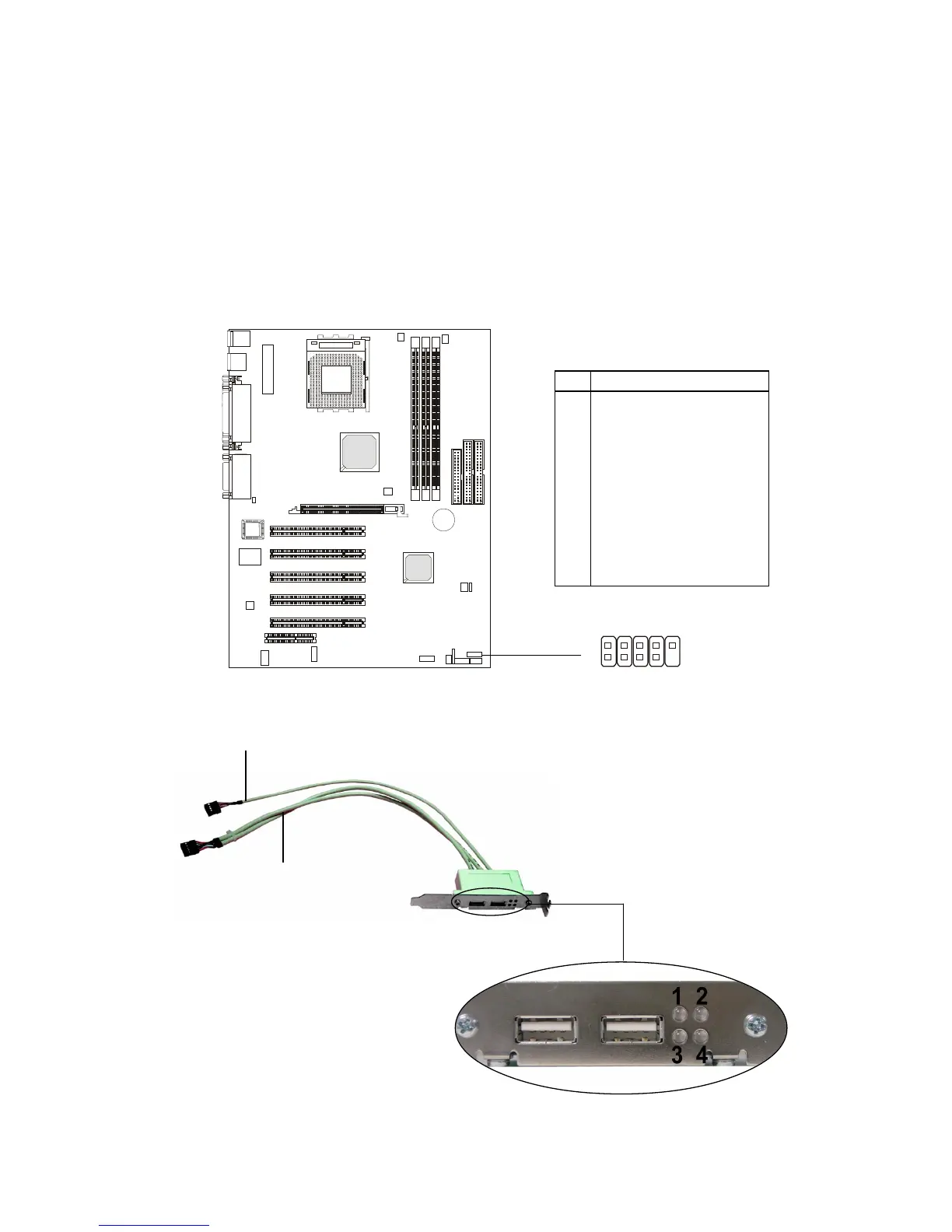

D-Bracket Connector: JLED
The mainboard comes with a JLED connector for you to connect to D-
Bracket. D-Bracket is a USB Bracket integrating four LEDs and allows
users to identify system problem through 16 various combinations of LED
signals. For definitions of signal combinations, please refer to D-Bracket in
Chapter 1.
Pin Signal
1 DBG1 (high for green color)
2 DBR1 (high for red color)
3 DBG2 (high for green color)
4 DBR2 (high for red color)
5 DBG3 (high for green color)
6 DBR3 (high for red color)
7 DBG4 (high for green color)
8 DBR4 (high for red color)
9 Key
10 N C
JLED Pin Definition
JLED
1 9
2
10
D-Bracket
Connected to JLED
Connected to JUSB2
To Next Page
