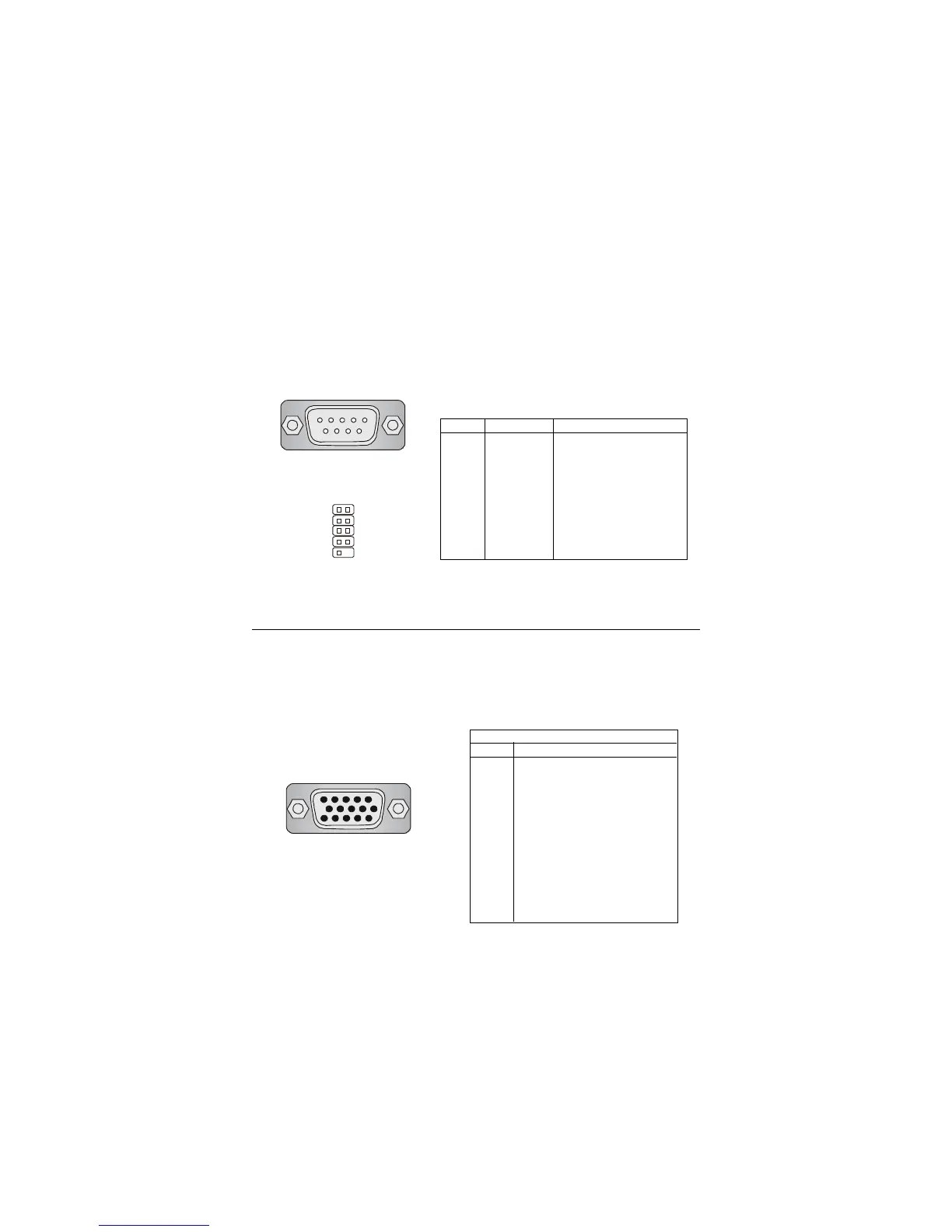

9-Pin Serial Port Connector
1 2 3 4 5
6 7 8 9
Serial Port Connector: COM A & COM 2
One 9-pin male DIN serial port COM A and one 9-pin COM2 pin header
are supplied. You can attach a serial mouse or other serial devices to the
connectors.
VGA DB 15 Pin Connector
One DB 15-pin VGA connector is provided for connection to a VGA
monitor.
DB 15-Pin Female Connector
5 1
15 11
Analog Video Display Connector (DB-15S)
PIN SIGNAL DESCRIPTION
1 Red
2 Green
3 Blue
4 Not used
5 Ground
6 Ground
7 Ground
8 Ground
9 Power
10 Ground
11 Not used
12 SDA
13 Horizontal Sync
14 Vertical Sync
15 SCL
Pin Definition
2
10
1
9
PIN SIGNAL DESCRIPTION
1 DCD Data Carry Detect
2 SIN Serial In or Receive Data
3 SOUT Serial Out or Transmit Data
4 DTR Data Terminal Ready
5 GND Ground
6 DSR Data Set Ready
7 RTS Request To Send
8 CTS Clear To Send
9 RI Ring Indicate
Pin Definition
