Hardware Setup
2-19

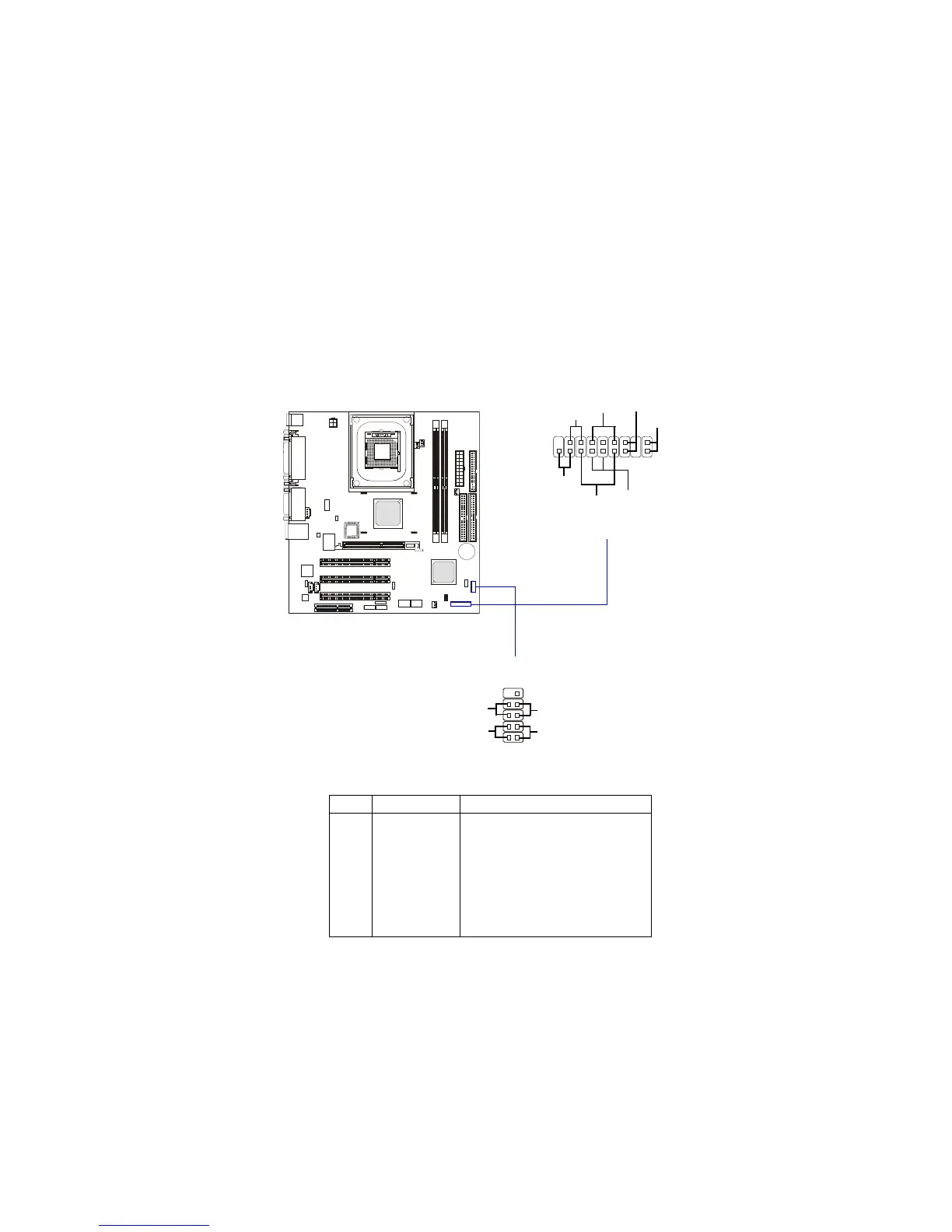

Front Panel Connector: JFP1 or PANEL1 (optional)
The mainboard provides one front panel connector for electrical connec-
tion to the front panel switches and LEDs. Users can choose either the JFP1 or
the PANEL1 depending on their needs. The difference between JFP1 & PANEL1
is that JFP1 is compliant with Intel
®
Front Panel I/O Connectivity Design Guide.
12
910
JFP1
HDD
LED
Reset
Switch
Power
LED
Power
Switch
PIN SIGNAL DESCRIPTION
1 HD_LED_P Hard disk LED pull-up
2 FP PWR/SLP MSG LED pull-up
3 HD_LED_N Hard disk active LED
4 FP PWR/SLP MSG LED pull-up
5 RST_SW_N Reset Switch low reference pull-down to GND
6 PWR_SW_P Power Switch high reference pull-up
7 RST_SW_P Reset Switch high reference pull-up
8 PWR_SW_N Power Switch low reference pull-down to GND
9 RSVD_DNU Reserved. Do not use.
JFP1 Pin Definition
9
10
PANEL1
(optional)
1
18
14
15
Power
Switch
Power
LED
+
HDD LED
Keylock
Reset
Switch
+
Speaker
Buzzer
To Next Page
