Hardware Setup
2-21

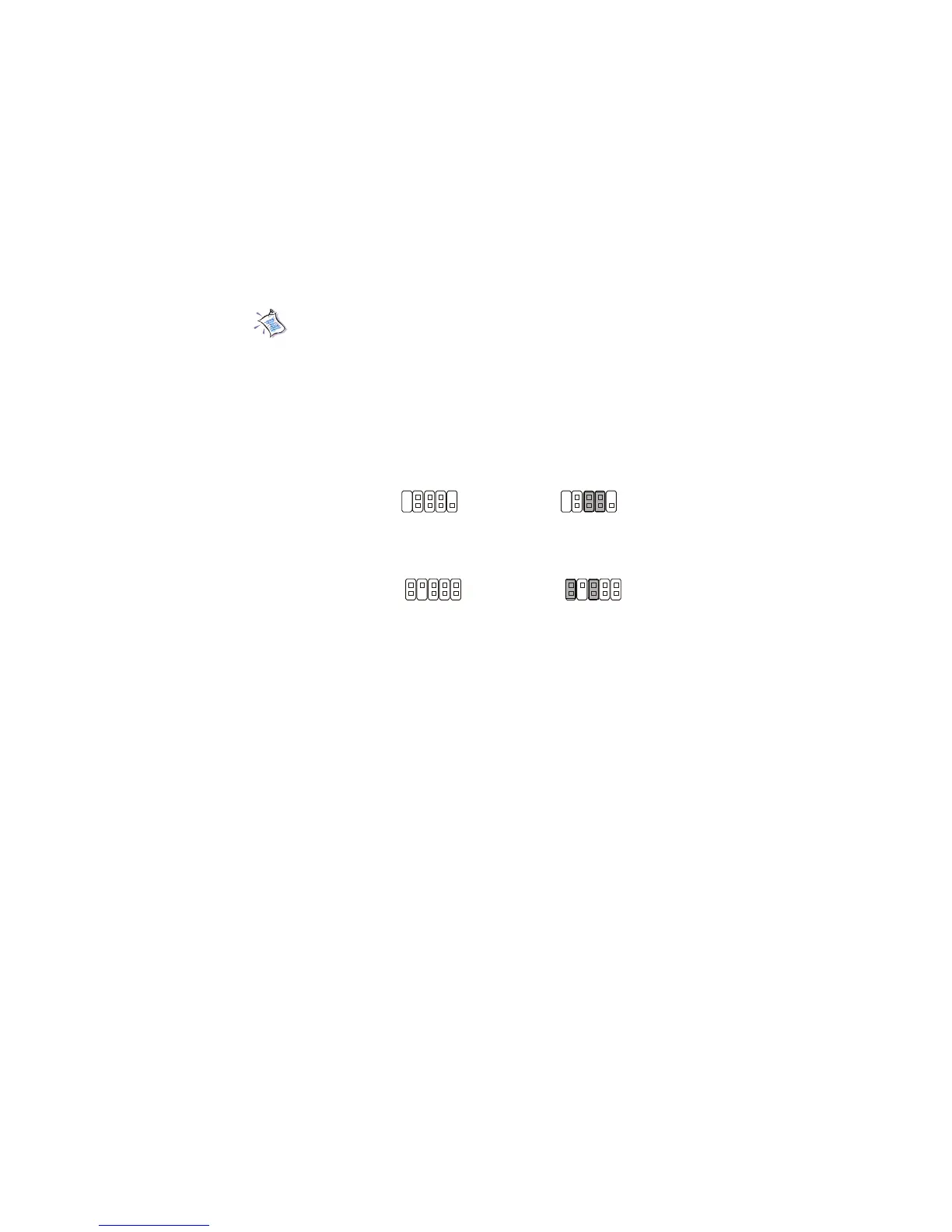

Note: To have the Line-out connector on the back panel work
properly, you need to place jumpers on pin# 5~8 (F_AUDIO) or on
pin#5~6 and 9~10 (JAUDIO1) of the front panel audio connector.
Otherwise, this Line-out connector will not function and nothing can
be heard through speakers or headphones attached to the Line-out
connector on the back panel. But front panel audio connector is
enabled at this point and allows you to connect speakers or head-
phones through the front panel.
- Enable Line-out connector on the
back panel
- Disable Front Panel Audio
Connector
- Disable Line-out connector on the
back panel
- Enable Front Panel Audio
Connector
(SHORT pin# 5~6 and 9~10)
JAUDIO1
(OPEN pin# 5~6 and 9~10)
F_AUDIO
(SHORT pin# 5~8)
2 6 8
1 5 7
(OPEN pin# 5~8)
2 6 8
1 5 7
10 6 2
9 5 1
10 6 2
9 5 1
