2-27
Hardware Setup

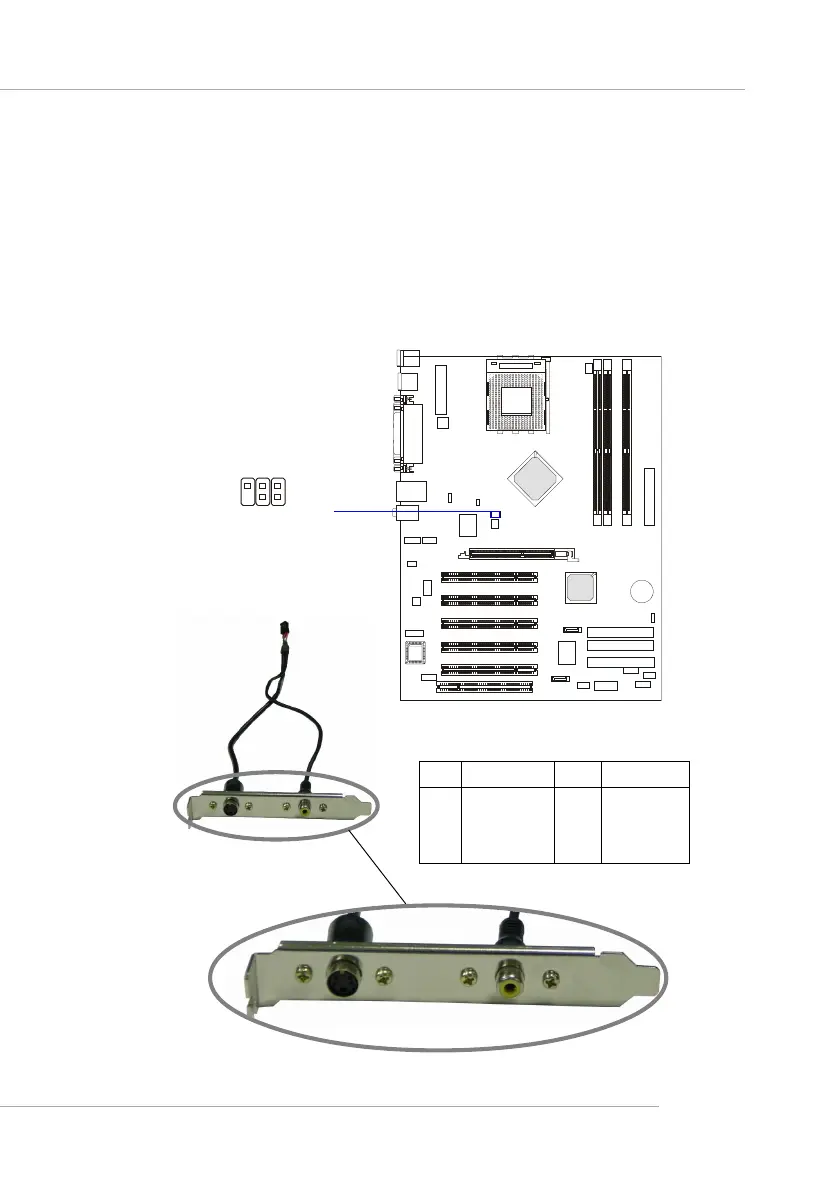

TV-Out Connector: JTV1 (Optional)
The mainboard optionally provides a TV-Out connector for you to at-
tach a TV-Out bracket. The TV-Out bracket offers two types of TV-Out
connectors: S-Video and RCA Composite connector. Select the appropriate
one to connect to the television and the television will be able to display PC’s
information. For details on how to install the TV-Out bracket and configure
the display settings, see Appendix: Using the TV-Out Function.
TV-Out Bracket
Pin Description Pin Description
1 GND 4 CVBS
2 Yout 5 GND
3 Cout
JTV1 Pin Definition
TV-Out Connector
(S-Video)
TV-Out Connector
(RCA Composite)
3
JTV1
1
5
4
To Next Page
