MS-6570 ATX Mainboard

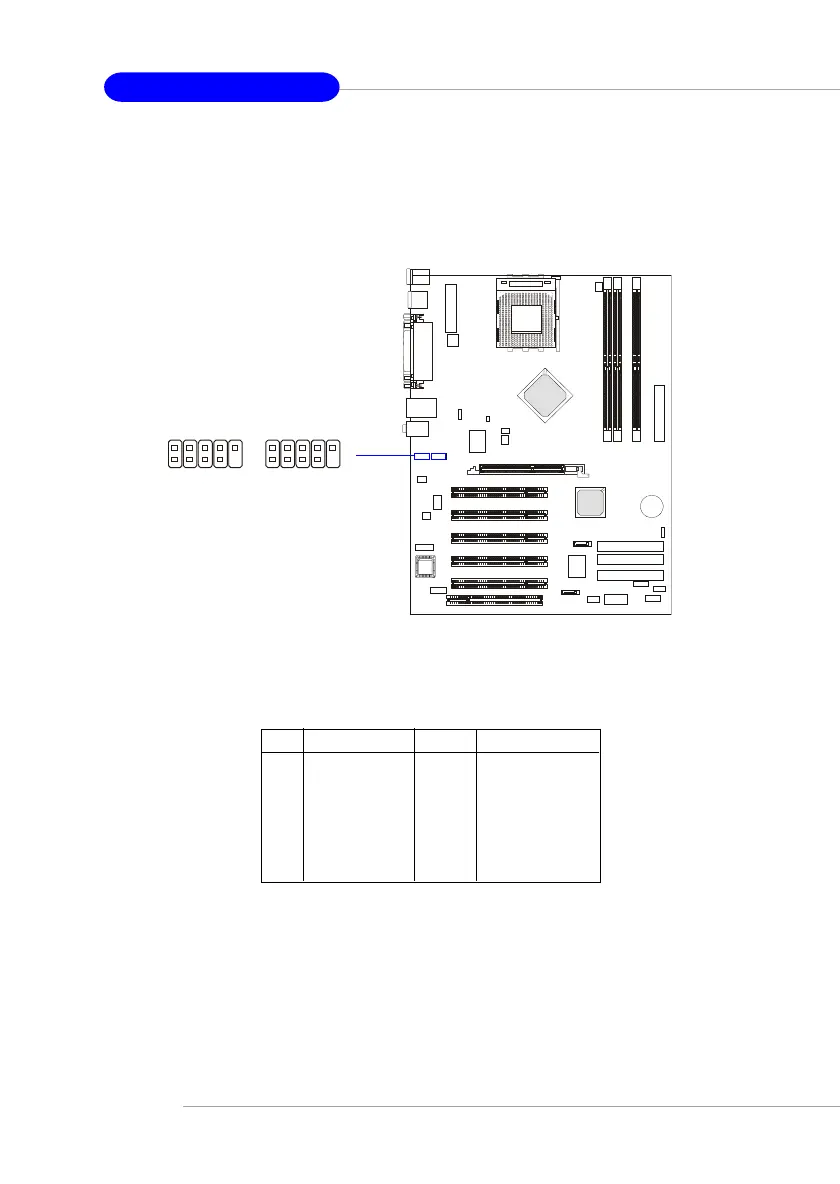

IEEE 1394 Connectors: J1394_1 & J1394_2 (Optional)
The mainboard provides two 1394 pin headers that allow you to con-
nect IEEE 1394 ports via an external IEEE1394 bracket (optional).
Pin Definition
PIN SIGNAL PIN SIGNAL
1 TPA+ 2 TPA-
3 Ground 4 Ground
5 TPB+ 6 TPB-
7 Cable power 8 Cable power
9 Key (no pin) 10 Ground
J1394_1
1 9
2 10
J1394_2
1 9
2 10
