2-29
Hardware Setup
3. Connect the IEEE1394 Bracket to
the connectors. Align the foolproof
design with the pin layout of the
connector to avoid mis-inserting.

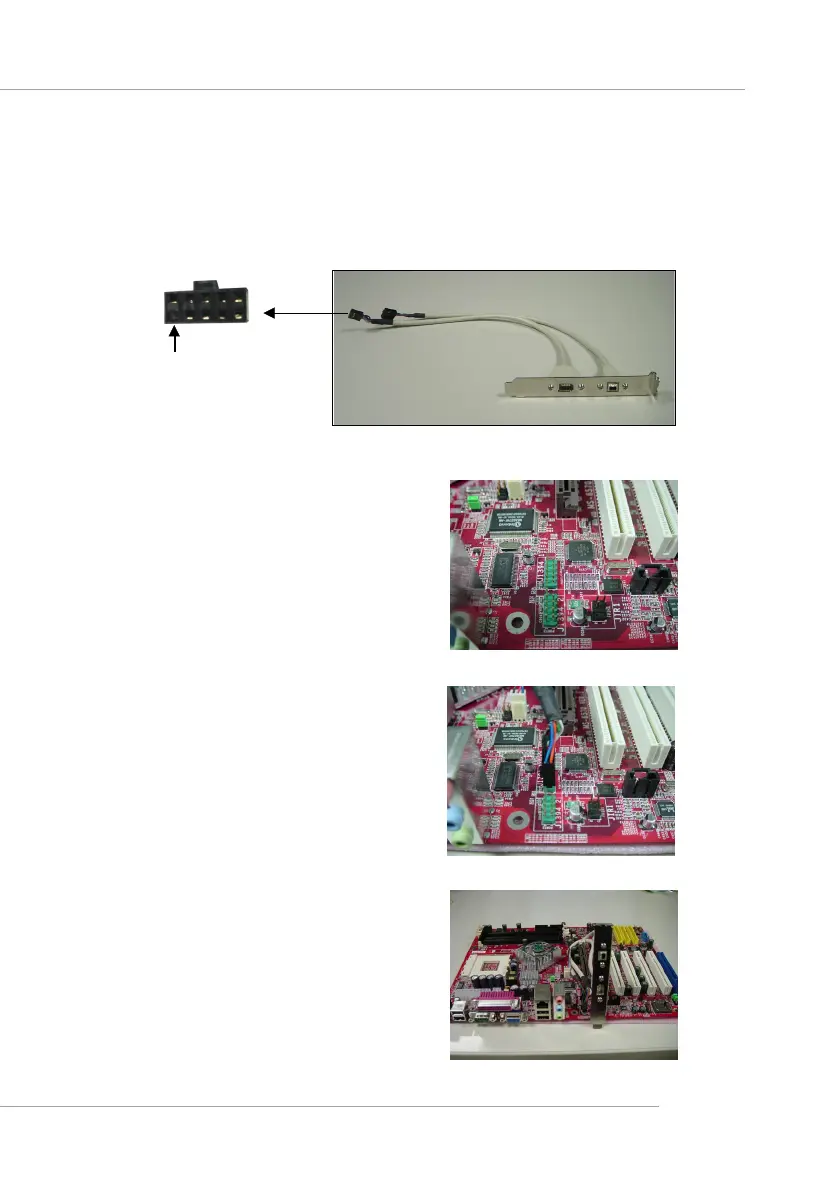

How to attach the IEEE 1394 Port:
Foolproof
design
IEEE1394 bracket (optional)
1. Take out the IEEE 1394 Bracket.
2. Locate the IEEE 1394 connectors
(J1394_1, J1394_2) on the
mainboard.
4. Place the IEEE 1394 Bracket into the
first slot of your system case.
To Next Page
