2-30
MS-6570 ATX Mainboard

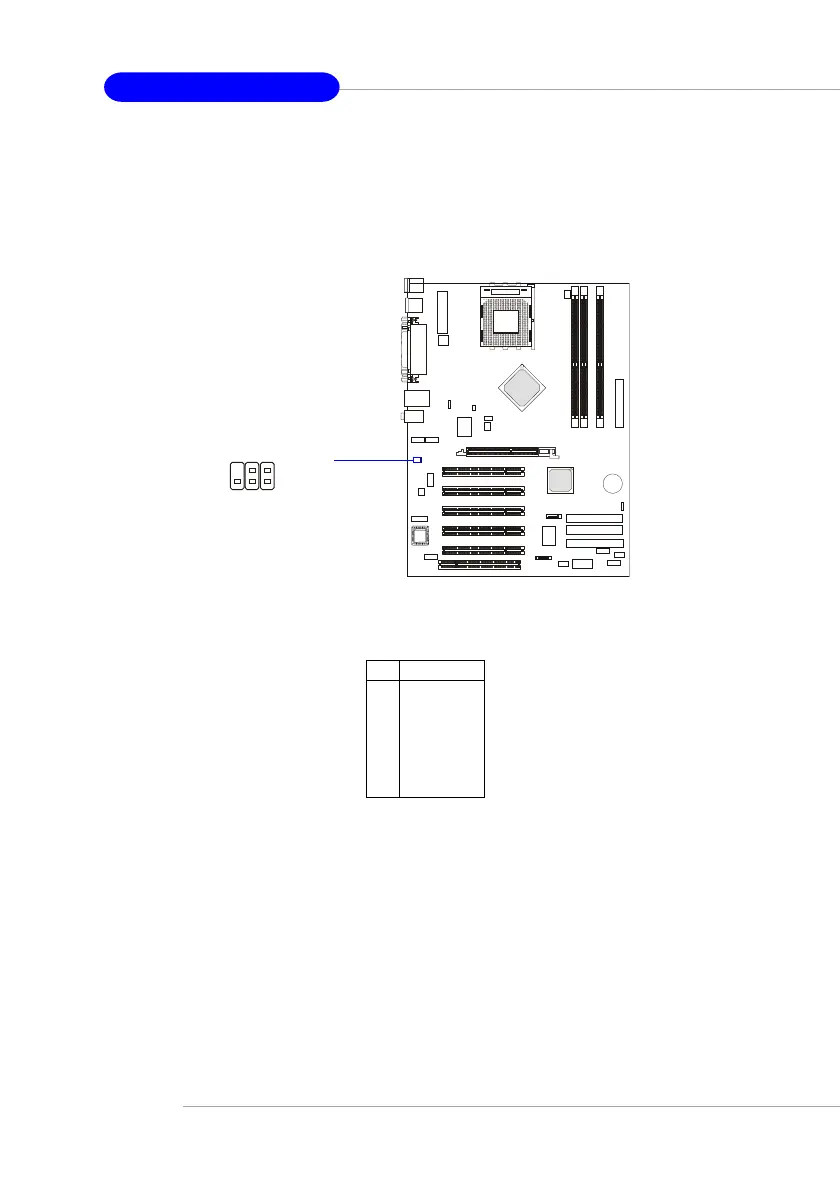

IrDA Infrared Module Header: JIR1
The connector allows you to connect to IrDA Infrared module. You
must configure the setting through the BIOS setup to use the IR function.
JIR1 is compliant with Intel
®
Front Panel I/O Connectivity Design Guide.
JIR1
1 5
2 6
Pin Signal
1NC
2NC
3 VCC5
4 GND
5 IRTX
6 IRRX
Pin Definition
