Chapter 2
2-22

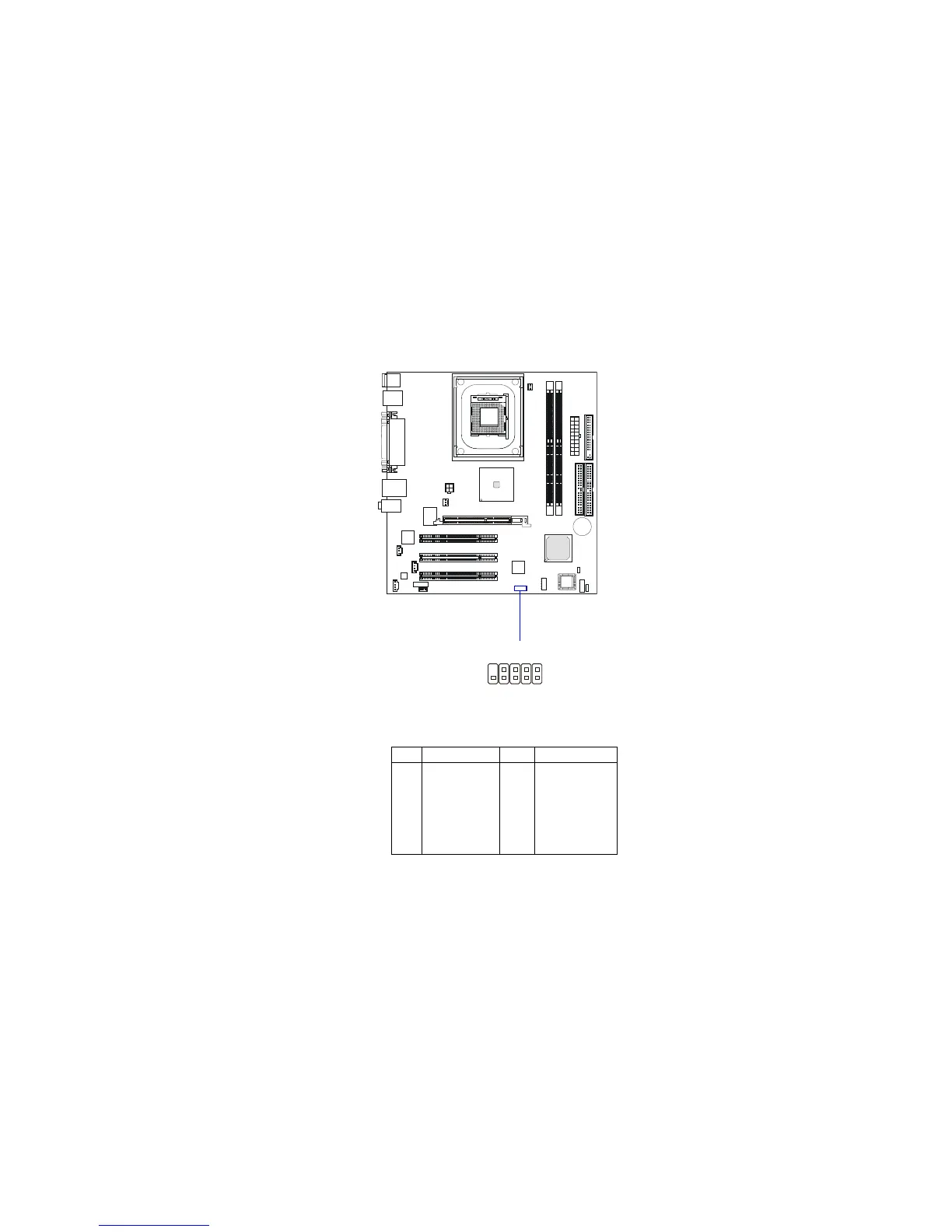

IEEE 1394 Connector: J1394_2
The mainboard provides one 1394 pinheader that allows you to connect
additional IEEE 1394 devices.
J1394_2
1 9
2
10
PIN SIGNAL PIN SIGNAL
1TPA+ 2 TPA-
3 Ground 4 Ground
5 TPB+ 6 TPB-
7 Cable power 8 Cable power
9 Key (no pin) 10 Ground
Pin Definition
