MS-7204 mBTX Mainboard

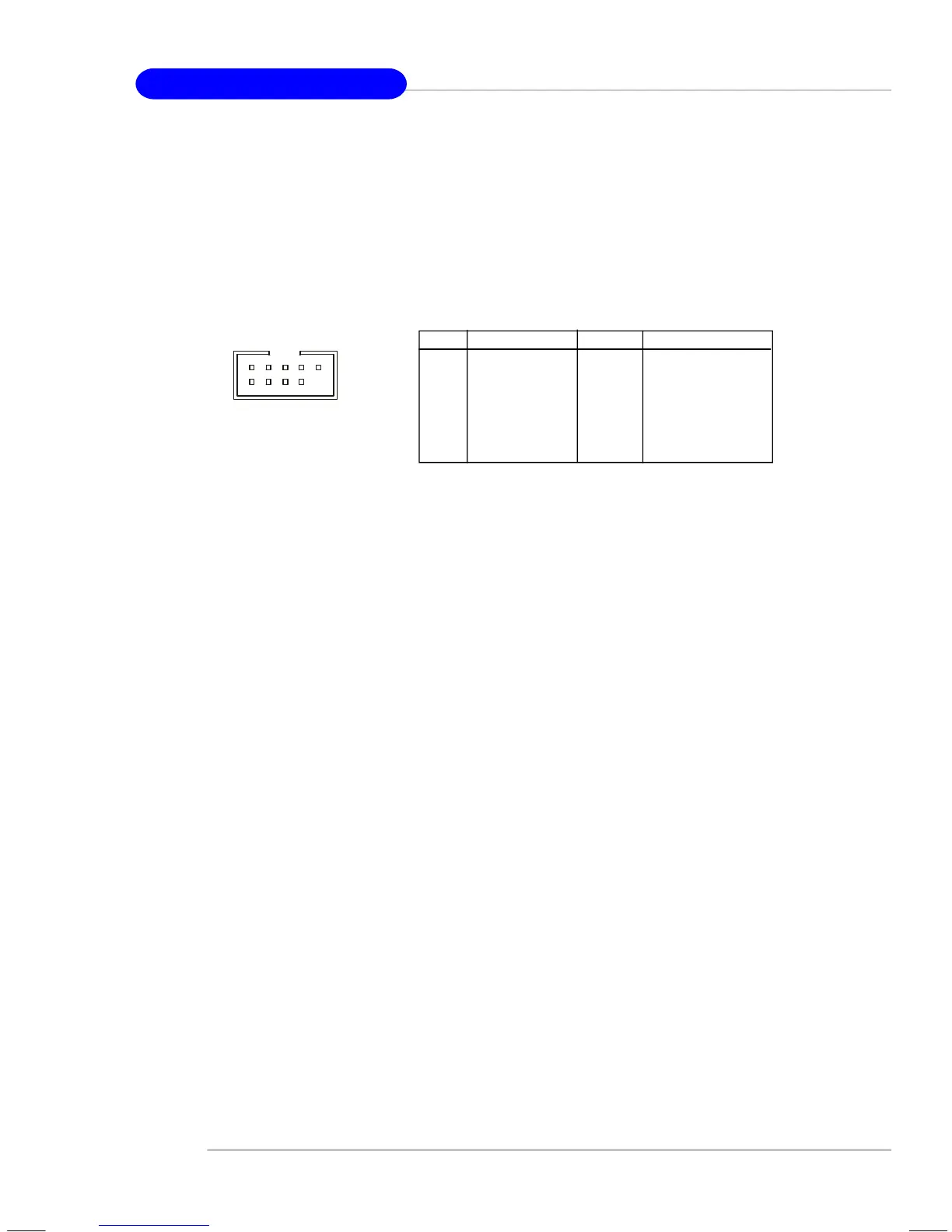

IEEE 1394 Connector: JFW1 (Optional)
The mainboard provides one 1394 pin header that allow you to connect
optional IEEE 1394 port.
JFW1
9
2
10
1
Pin Definition
PIN SIGNAL PIN SIGNAL
1 TPA+ 2 TPA-
3 Ground 4 Ground
5 TPB+ 6 TPB-
7 Cable power 8 Cable power
9 Key (no pin) 10 Ground
