MSI MS-7504 - Mainboard Layout

MS-7504 Mainboard
1-4
MS-7504 (V1.X) Micro-ATX mainboard

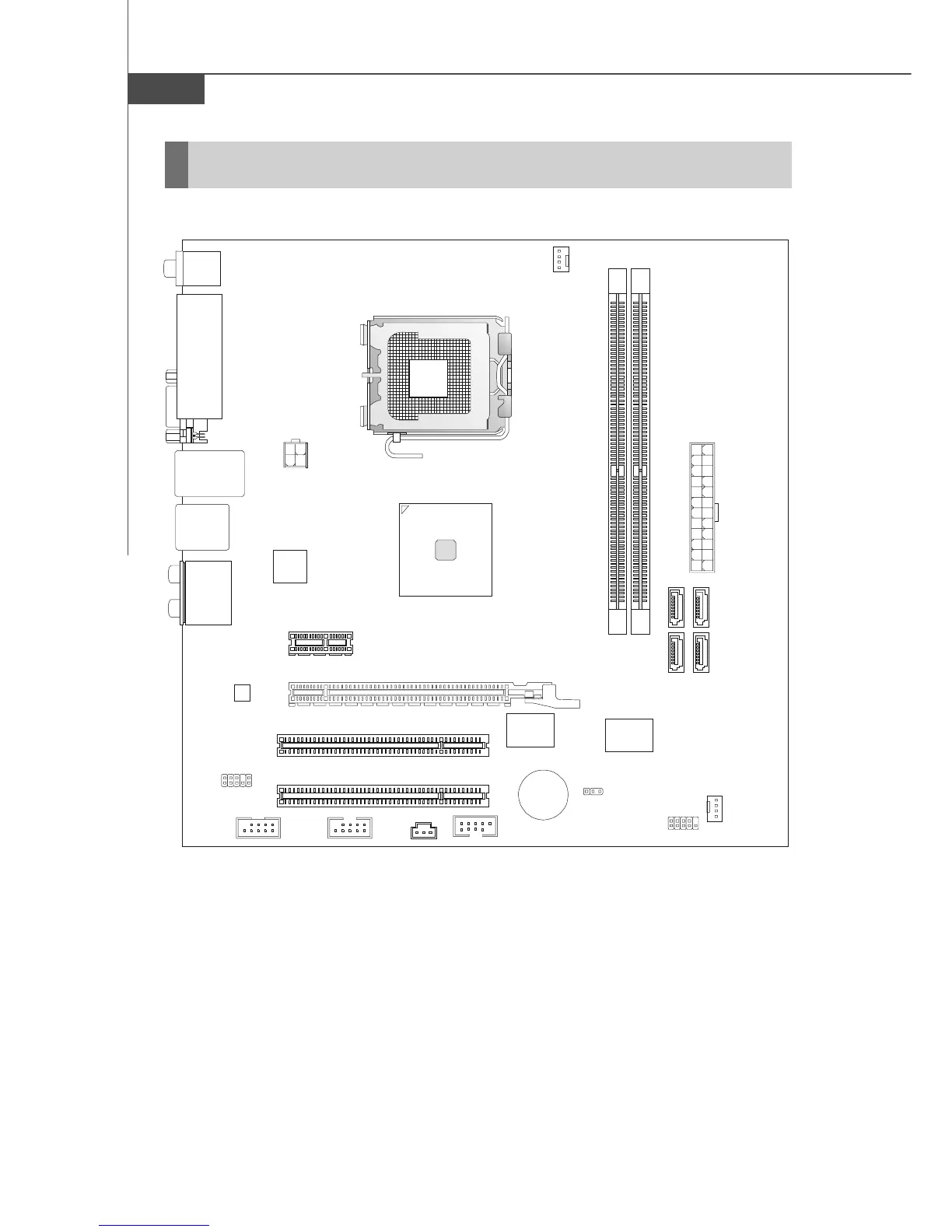

Mainboard Layout
PCI 2
PCI 1
PCI _E2
PCI _E1
BATT
+
JAUD1
JUSB1 JUSB2 JSPD1
J1394_1
JBAT1
VIA
VT6308P
NVIDIA
MCP73O
FINTEK
F71882FG
REALTEK
RTL8211BL
REALTEK
ALC888S
JFP1
SYSFAN
CPUFAN
PWR1
DIMM1 DIMM2
PWR2
SATA1 SATA3
SATA2 SATA4
Top: LAN jack
Bottom: USB ports
IEEE 1394 port
T:
M:
B:
Line-In
Line-Out
Mic
T: RS-Out
M: CS-Out
B: SS-Out
Top:
USB ports
Bottom:
VGA port
Top: Coaxial S/PDIF-Out jack
Bottom: Optical S/PDIF-Out jack
