2-13

Hardware Setup

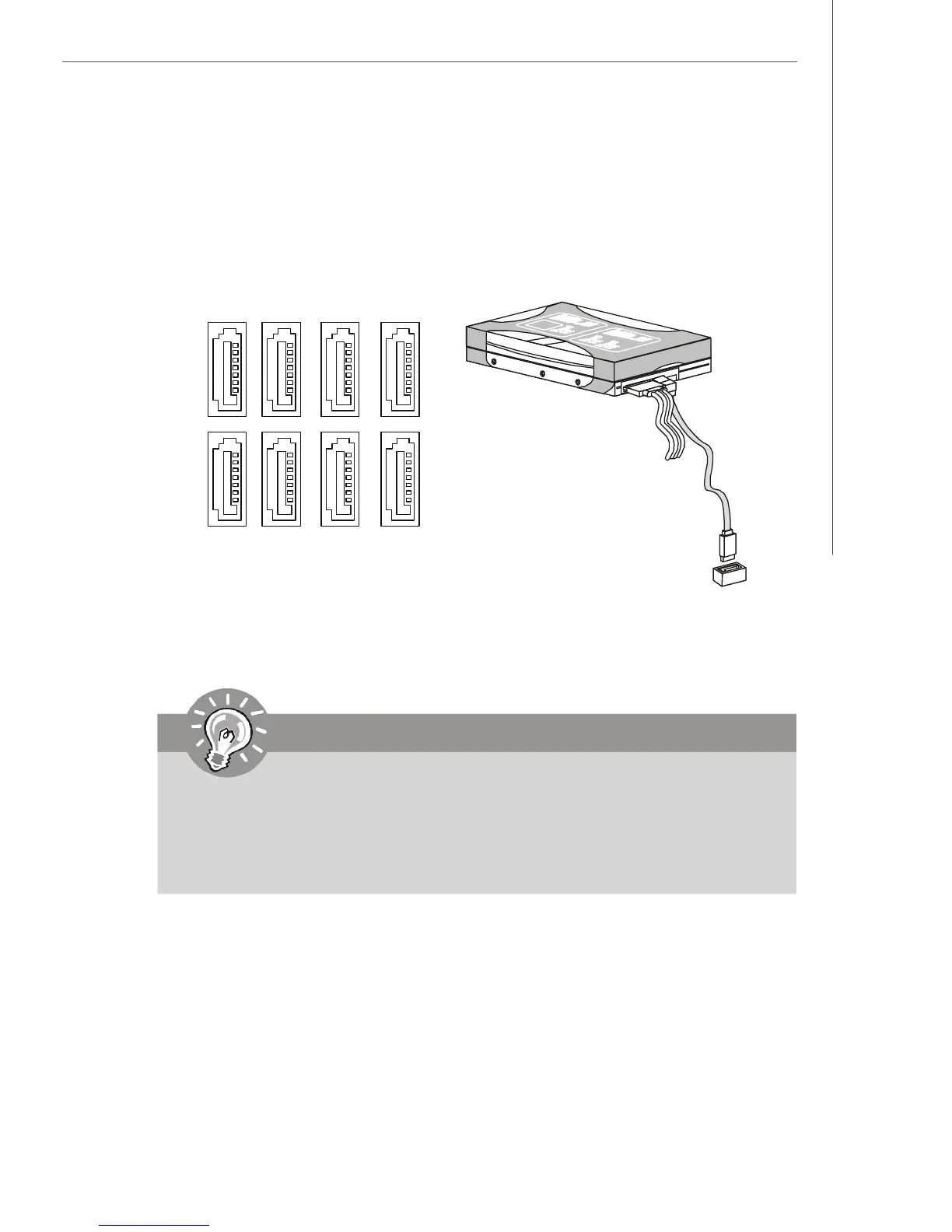

Serial ATA Connector: SATA1~8

This connector is a high-speed Serial ATA interface port. Each connector can connect

to one Serial ATA device.

SATA4

SATA3

SATA6 SATA2

SATA5

SATA1

Important

1. Please do not fold the Serial ATA cable into 90-degree angle. Otherwise,

data loss may occur during transmission.

2. SATA1~6 controlled by ICH10R/ ICH10, and the ICH10R supports RAID 0/

1/ 0+1/ 5 mode.

3. SATA7~8 controlled by JMB 363 and they support RAID 0/ 1 mode.

SATA8

SATA7

MSI P45D3Neo3 Series User Manual
