MSI P45T-C53 Series - Page 18

2-2
Hardware Setup ▍
MS-7519
Hardware Setup ▍
MS-7519
JPWR2, p.2-9

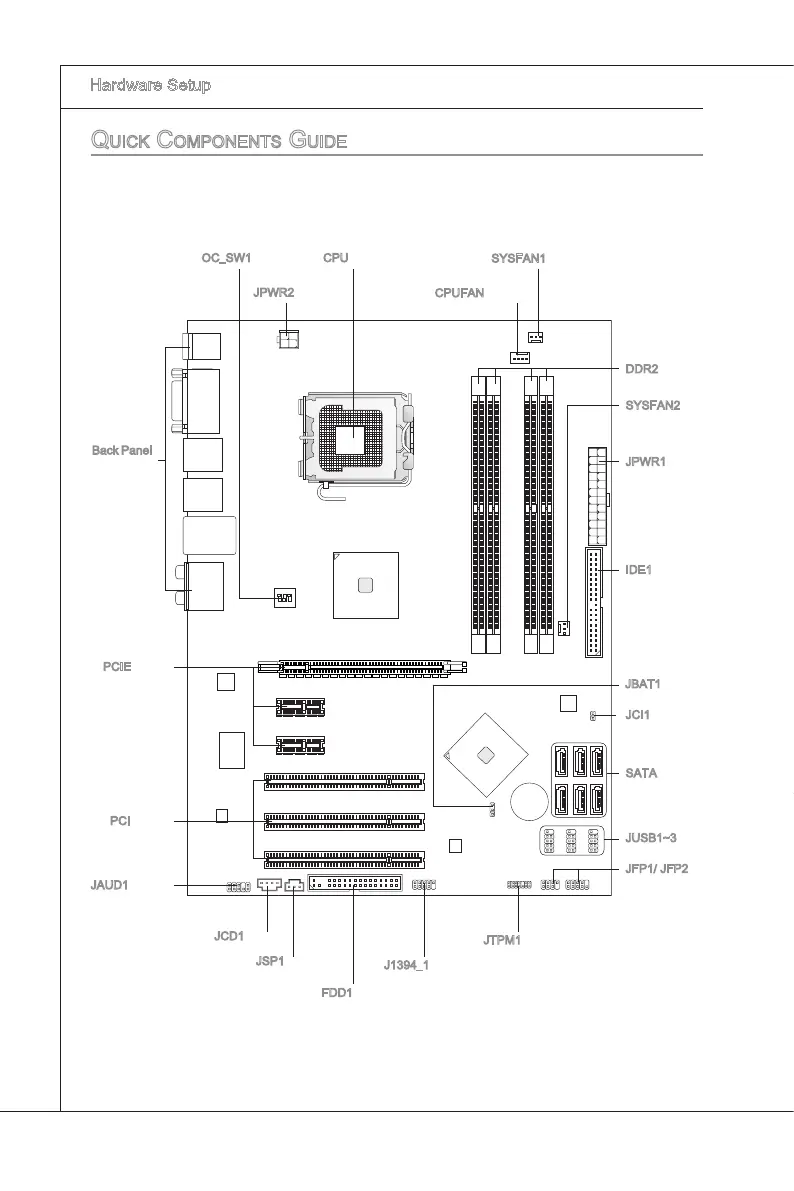

Quick coMponentS guide
Back Panel,
p.2-10
CPU, p.2-3
CPUFAN, p.2-14
DDR2, p.2-7
JCI1, p.2-13
JPWR1, p.2-9
IDE1, p.2-12
JTPM1, p.2-18
SATA, p.2-13
JFP1/ JFP2, p.2-15
JUSB1~3, p.2-16
JBAT1, p.2-19
J1394_1, p.2-15
JCD1, p.2-14
JAUD1, p.2-17
PCI, p.2-22
PCIE, p.2-21
SYSFAN2, p.2-14
JSP1, p.2-17
SYSFAN1, p.2-14
OC_SW1, p.2-20
FDD1, p.2-12
