JARGB_V2_1~2 : Connecteurs LED A-RAINBOW V2 (ARGB
Gen2)
Les connecteurs JARGB_V2 vous permettent de connecter les rubans LED ARGB
Gen2 et ARGB. Le connecteur JARGB_V2 supporte jusqu’à 240 LED RGB adressables
individuellement avec une puissance nominale maximale de 3 A (5 V).
Broche Nom de signal Broche Nom de signal
1 +5V 2 Data
3 No Pin 4 Ground
1
1
1
1
1
D
+5V
Connecteur JARGB_V2
Connecteur JARGB_V2

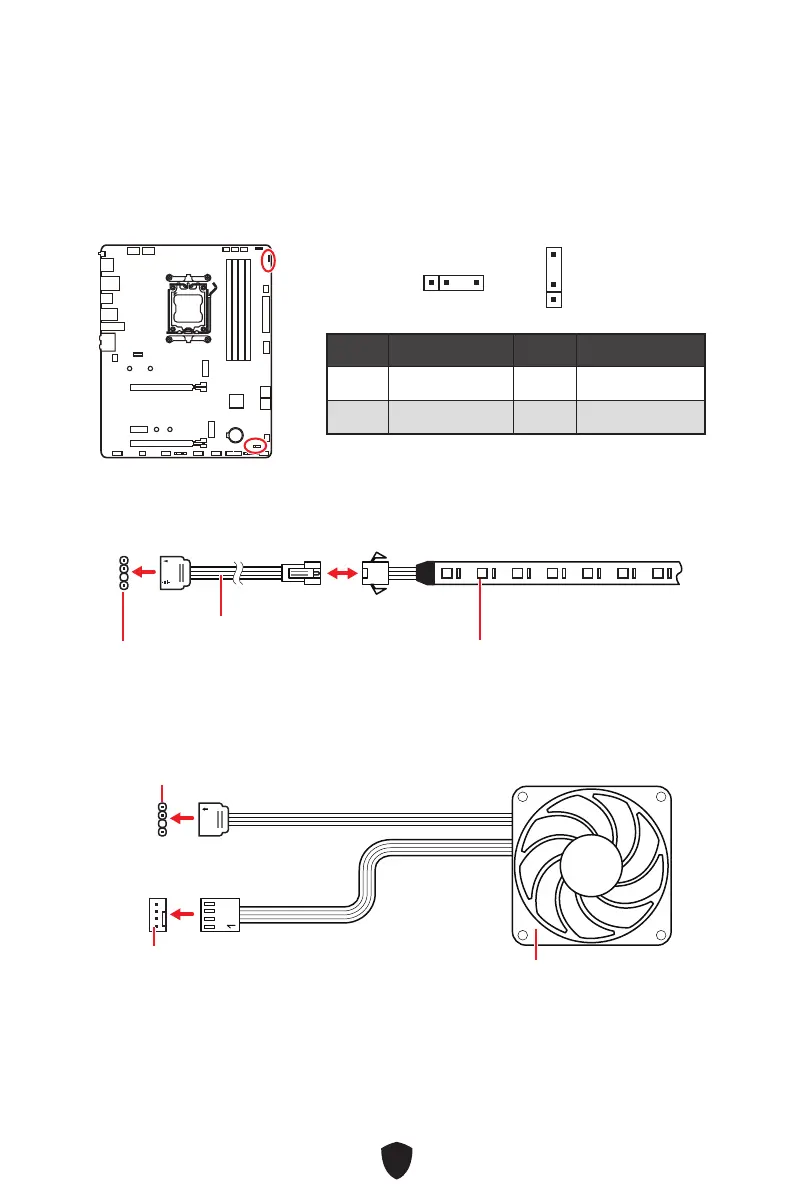

Connecteur de ventilateur système
Câble d’extension JARGB
Ruban LED ARGB/ARGB Gen2
Connexion du ruban LED RGB adressable
Connexion du ventilateur LED RGB adressable
Ventilateur LED ARGB/ARGB Gen2

MSI PRO B650-S WIFI Specifications

General

Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Supported processor sockets	Socket AM5
Non-ECC	Yes
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	192 GB
Supported memory clock speeds	7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Supported memory clock speed (max)	7200 MHz
LAN controller	Realtek RTL8125-BG
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Number of SATA III connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
RAID levels	0, 1
Supported storage drive interfaces	M.2, SATA
BIOS type	-
Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	AMD B650
PC health monitoring	Fan
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 11 x64

Weight and Dimensions

Depth	304.8 mm
Width	243.84 mm
