MSI PRO B760M-E DDR4 User Manual

26
BAT1

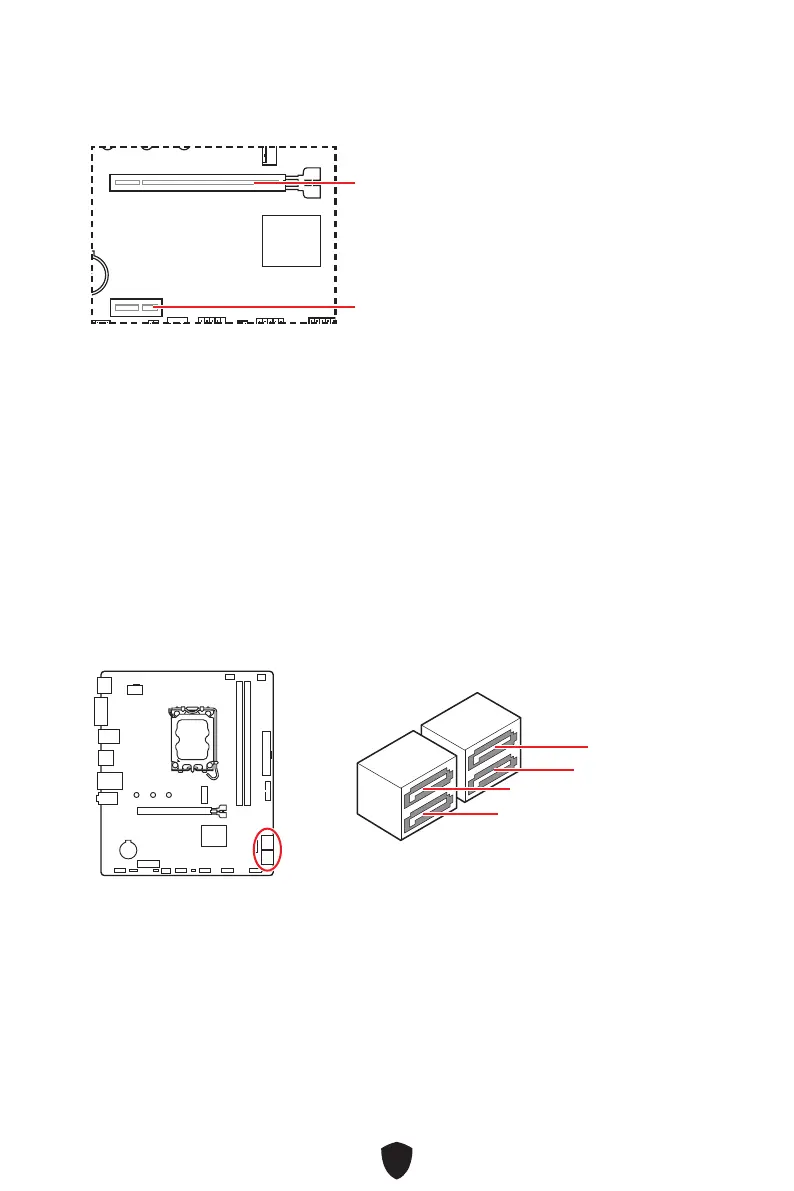

PCI_E1~3: PCIe Expansion Slots
PCI_E1: PCIe 4.0 x16 (From CPU)
PCI_E2: PCIe 3.0 x1 (From B760 chipset)

Important
 If you install a large and heavy graphics card, you need to use a tool such as MSI
Graphics Card Bolster to support its weight to prevent deformation of the slot.
 When adding or removing expansion cards, always turn off the power supply and
unplug the power supply power cable from the power outlet. Read the expansion
card’s documentation to check for any necessary additional hardware or software
changes.
SATA_5~8: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.

Important
 Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
 SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
 SATA_5 will be unavailable when installing M.2 SATA SSD in M2_1 slot.
SATA_8
SATA_7
SATA_6
SATA_5

MSI PRO B760M-E DDR4 Specifications

General

Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium Gold
Supported processor sockets	LGA 1700
Maximum number of SMP processors	1
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	4800, 4600, 4400, 4266, 4200, 4000, 3800, 3733, 3600, 3466, 3400, 3333, 3200, 2933, 2666, 2400, 2133 MHz
Supported memory clock speed (max)	4800 MHz
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Number of SATA III connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
HDMI version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	M.2, SATA III
BIOS type	UEFI AMI
ACPI version	6.4
BIOS memory size	256 Mbit
System Management BIOS (SMBIOS) version	3.5
Parallel processing technology support	-
Audio chip	Realtek ALC897
Component for	PC
Power source type	ATX
Motherboard chipset	Intel B760
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10, Windows 11

Weight and Dimensions

Depth	236.16 mm
Width	200 mm
