2-6 2-7

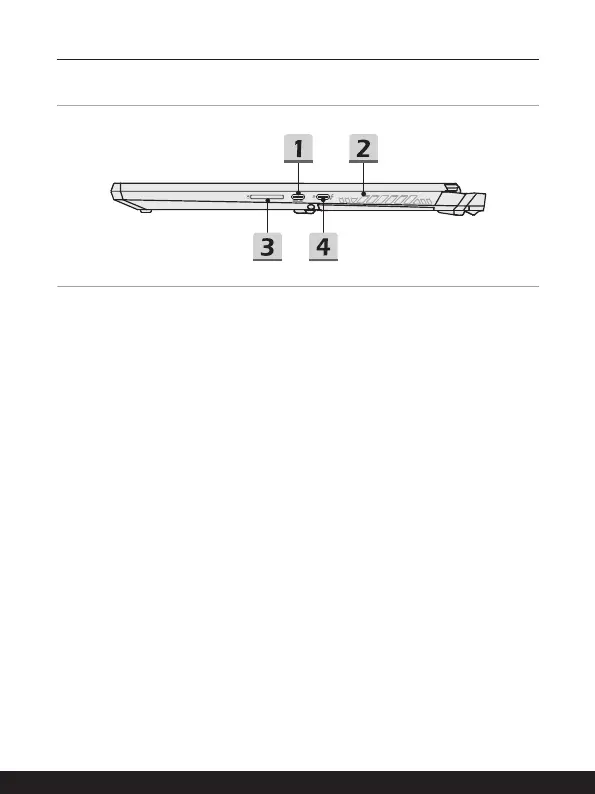

Right Side View
1. USB 3.2 Gen 2 Port (Type-C) (with DisplayPort function)
USB 3.2 Gen 2, the SuperSpeed USB 10Gbps, supports high-speed data transfer for
connected devices, such as storage devices, hard drives, or video cameras.
The slim and sleek USB Type-C connector offers reversible plug orientation, and
supports 5V/3A portable charging power when AC power is connected. However,
the maximum portable charging power limitation may up to 5V/1.5A while battery DC
power is connected.
2. Ventilator
The ventilator is designed to cool the system. DO NOT block the ventilator for air
circulation.
3. Card Reader
The built-in card reader supports various types of memory cards. Check the
Specifications for details.
4. Thunderbolt (Type-C) combo ports
• Thunderbolt™ 4, optionally supports USB4, PCIe, HDMI™, DisplayPort
connection; 8K display monitor output; up to 40Gbps transfer rate.
• Supports Power Delivery function with variable up to 100W power input and
maximum 9V/3A or 5V/3A power output when AC or DC power is connected. )
• Supports using a power bank to supply power to the notebook and charge the
battery pack. Make sure the charging power output of the power bank meets the
minimum requirements of the notebook.
