MSI X299 TOMAHAWK

39
Overview of Components

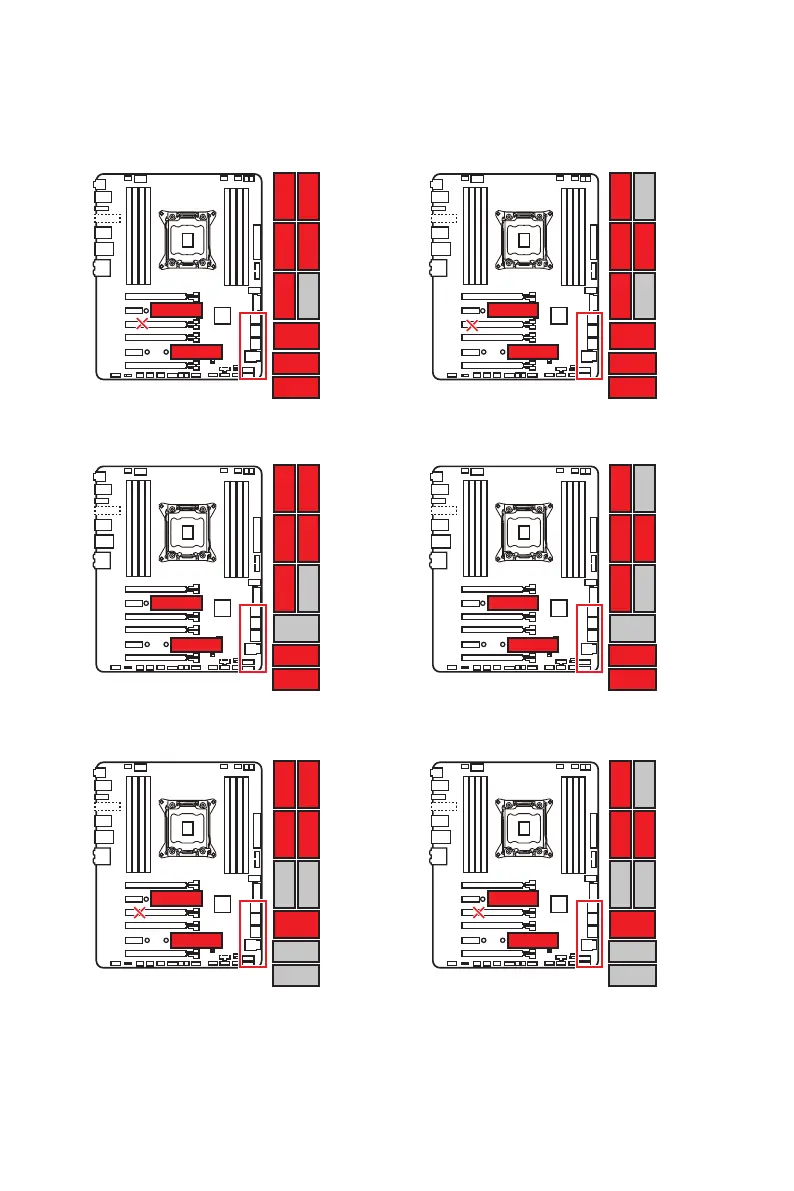

M.2 slots with examples of various combination possibilities
1xM.2 PCIe+ 1xM.2 SATA+ 7xSATA
1xU.2+ 1xM.2 PCIe+ 1xM.2 SATA+
7xSATA
M.2 PCIe
M.2 PCIe
M.2 SATA
M.2 SATA
2xM.2 SATA+ 6xSATA
1xU.2+ 2xM.2 SATA+ 6xSATA
M.2 SATA
M.2 SATA
M.2 SATA
M.2 SATA
SATA4 SATA4SATA6 SATA6SATA2 SATA2 SATA3 SATA3
SATA7
SATA7
SATA8
SATA8
SATA4 SATA4SATA6 SATA6SATA2 SATA2
SATA1 SATA1SATA3 SATA3
SATA7
SATA7
SATA8
SATA8
1xU.2+ 2xM.2 PCIe+ 4xSATA
M.2 PCIe
M.2 PCIe
SATA4 SATA2U.2
SATA1SATA3
M.2 SATA
M.2 PCIe
SATA4 SATA2U.2 SATA3
1xU.2+ 1xM.2 SATA+ 1xM.2 PCIe+
3xSATA
U.2 U.2
