MSI Z170A PC MATE - Rear I;O Panel; LAN Port LED Status Table; Realtek HD Audio Manager

20

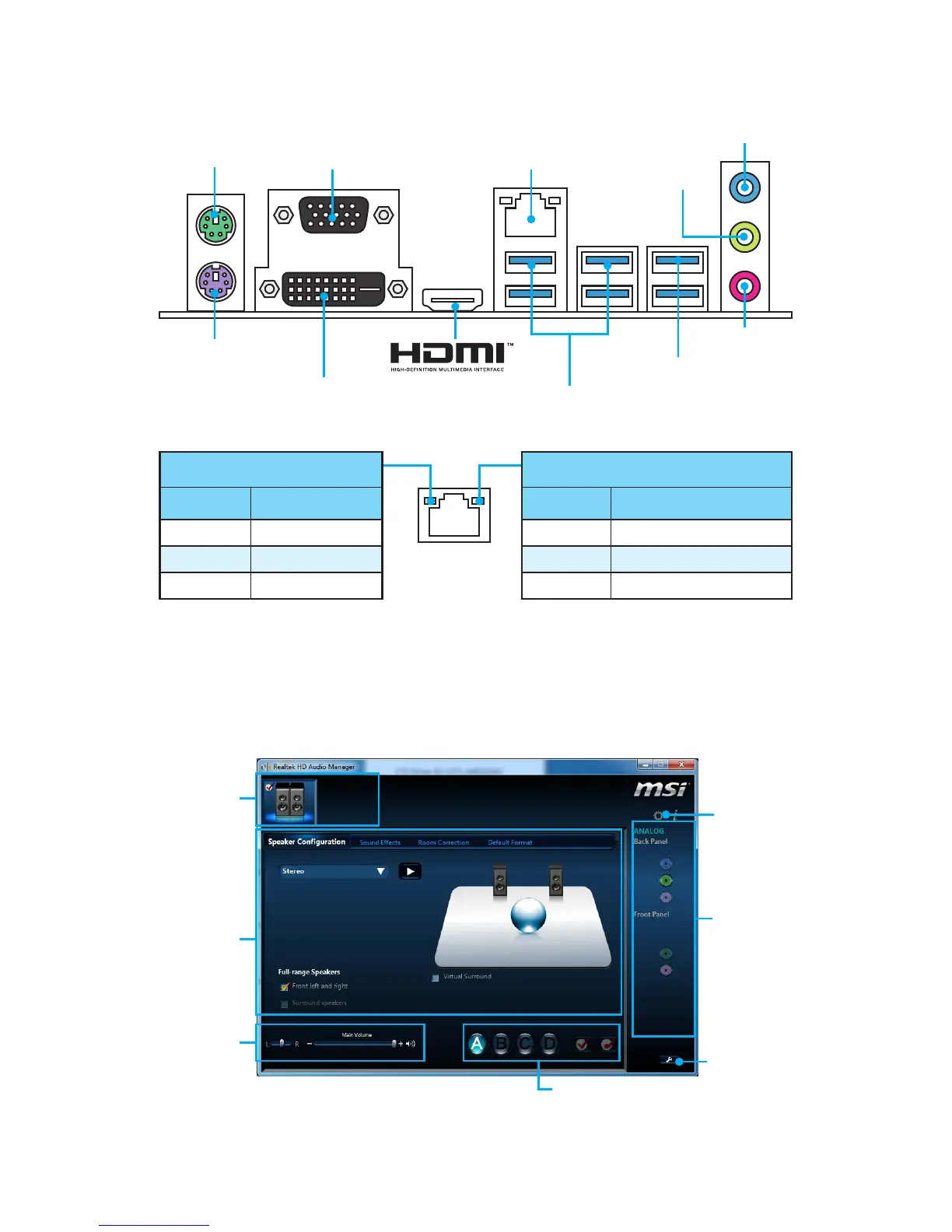

Rear I/O Panel
Realtek HD Audio Manager
After installing the Realtek HD Audio driver, the Realtek HD Audio Manager icon will
appear in the system tray. Double click on this icon to launch.
Jack Status
Device
Selection
Connector
Strings
Profiles
Main Volume
Application
Enhancement
Advanced
Settings
Rear I/O Panel
PS/2 Mouse
LAN
USB 3.1 Gen2
USB 3.1 Gen1
PS/2 Keyboard
VGA Port
DVI-D Port
Line-in
Line-out
Mic-in
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
