MSI Z170A PC MATE User Manual

30
Overview of Components

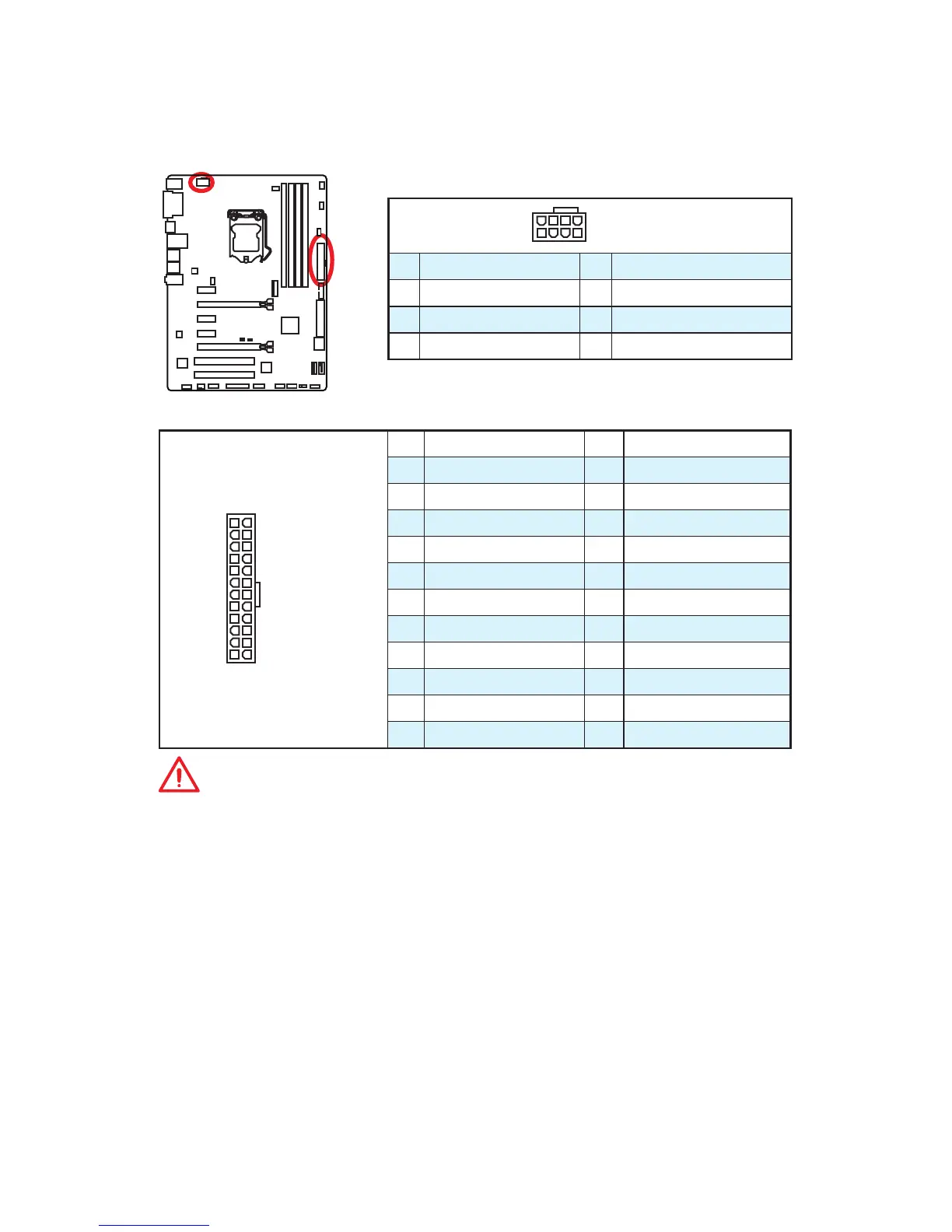

JPWR1~2: Power Connectors
These connectors allow you to connect an ATX power supply.
24
131
12
JPWR1
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 Ground
4 +5V 16 PS-ON#
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PWR OK 20 Res
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 Ground
5
4 1
8
JPWR2
1 Ground 5 +12V
2 Ground 6 +12V
3 Ground 7 +12V
4 Ground 8 +12V
Important
Make sure that all the power cables are securely connected to a proper ATX power
supply to ensure stable operation of the motherboard.

MSI Z170A PC MATE Specifications

General

Chipset	Intel Z170
Socket	LGA 1151
Memory Support	DDR4
Maximum Memory	64GB
Memory Slots	4
PCIe x16 Slots	2
PCIe x1 Slots	3
SATA Ports	6
M.2 Slots	1
USB 3.1 Gen1 Ports	6
USB 3.1 Gen2 Ports	0
USB 2.0 Ports	6
Form Factor	ATX
Audio	Realtek ALC887 Codec
Memory Speed	2133 MHz
LAN	Realtek RTL8111H
Video Outputs	DVI-D, HDMI
